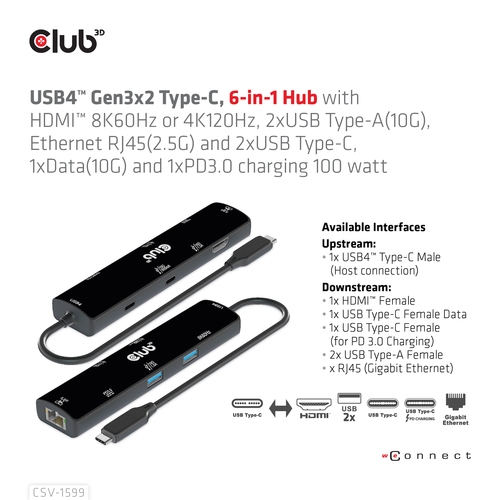

CLUB3D USB4™ Gen3x2 Type-C, 6-in-1 Hub with HDMI™ 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt
Part number CSV-1599
CLUB3D CSV-1599 IS A USB4 GEN3X2 TYPE-C, 6-IN-1 HUB - HDMI 8K60HZ/4K120HZ, 2XUSB

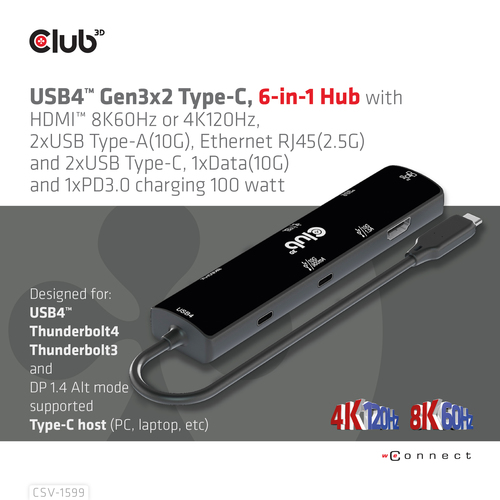

- Designed for USB4™, Thunderbolt4, Thunderbolt3 and DP 1.4 Alt mode supported Type-C host (PC, laptop, etc)
- Downwards compatible - Specifications are limited to Source capability
- Support USB4™ Specification with max 40Gbps bandwidth
- Compliant USB4™ Gen3x2(40Gbps),USB4™ Gen2x2(20Gbps) and backwards compatible USB3.2&USB2.0
- Compliant DP1.4 alt mode with max 32.4Gbps
- HDMI™ supports max 8k60Hz or 4K120Hz video output and High Dynamic Range(HDR10+)
- USB Type-C data port and 2 USB Type-A support USB 3.2 Gen2 SuperSpeed 10Gbps
- One USB Type-A and USB Type-C data port support 5V/1.5A downstream charging
- Fast Ethernet RJ45 supports 10M/100M/1000M/2.5G bandwidth
- One USB Type-C PD Charging support PD3.0 with max 100W PD Charging,15W is dedicated to the functioning of this product, the rest power (85W) will be passed to charge for the host
- Manufacturer
- CLUB 3D B.V
- Part number
- CSV-1599
- Condition
- New
- Category
- Cables › A/V Accessories
- 1GPA category
- Hardware
Overview

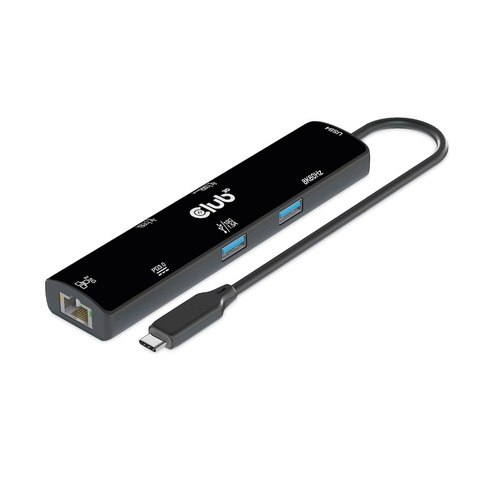

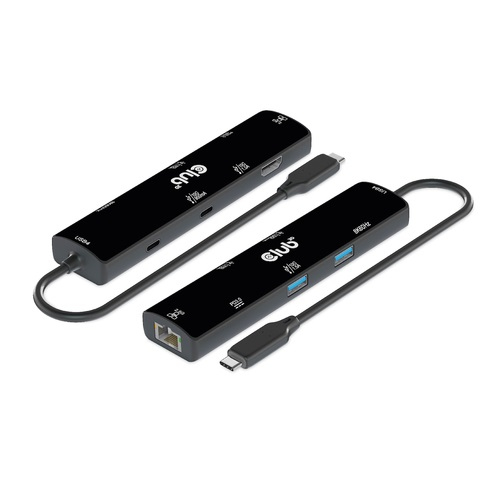

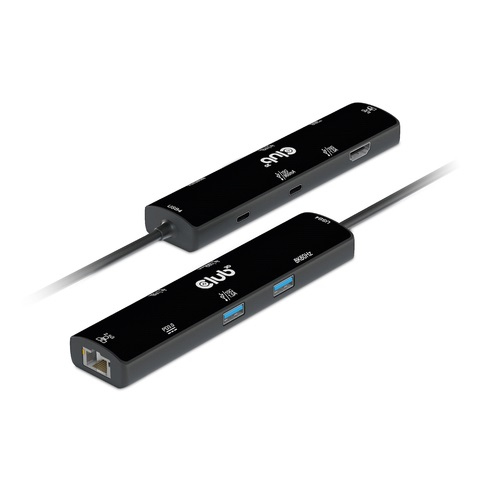

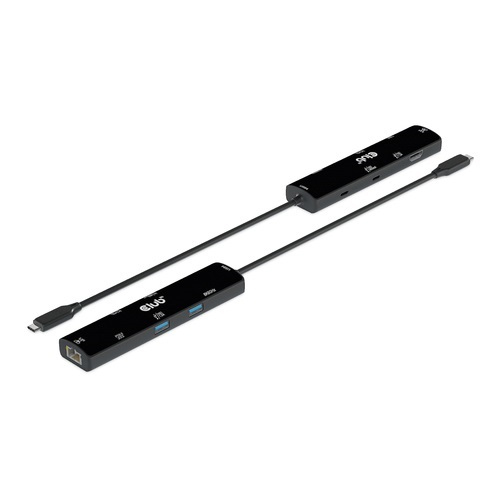

The Club 3D CSV-1599 is a USB4™ Gen3x2 Type-C, 6-in-1 Hub with HDMI™ 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt, this adapter is offering an integrated solution for video, data, power and Ethernet. It has a HDMI™(8K60Hz) for video transmission, 3 USB data ports (2 USB-A 10G, 1 Type-C 10G)for data transmission, a 2.5Gbps Ethernet port for surfing on line. Besides, this adapter is equipped with Type-C PD3.0 Charging port with max 100W power supply. It can work on USB4™, Thunderbolt4, Thunderbolt3 and DP Alt mode (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts
- Max 10Gbps data transmission
- Support 7.5W(5V@1.5A) downstream charging
- Support short-circuit, over-current, over-voltage protection
- 1x USB Type-C Female (for PD 3.0 Charging)
- Support PD3.0 with max 100W PD Charging
- 15W is dedicated to the functioning of this product, the rest power (85W) will be passed to charge for the host
- Support fast role swap of PD3.0, the connected device will not get disconnected while plugging out PD Adapter;
- 2x USB Type-A Female
- 1- USB Type-A port Data 10G, support max 7.5W(5V@1.5A) downstream charging(closest to RJ45)
- 2- USB Type-A port Data 10G, support max 4.5W(5V@900mA) downstream charging
- 3- Support short-circuit, over-current, over-voltage protection
- 4- USB Type-C and 2 USB Type-A ports share max 2.4A(24W) downstream charging
- 1x RJ45 (Gigabit Ethernet)
- Support 10M/100M/1000M/2.5G bandwidth
- Supports twisted pair crossover detection and auto-correction
- Support WOL(Wake-On-LAN), Full Duplex flow(10M/100M/1G/2.5G Rate), Auto-Negotiation
- Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.
Specifications
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| DC-in jack | No |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Card reader integrated | No |
|---|---|
| Maximum refresh rate | 120 Hz |
| Product colour | Black |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| LED indicators | Yes |
| Power supply type | USB |
|---|---|
| Wireless charging | No |
| Width | 147 mm |
|---|---|
| Depth | 31 mm |
| Height | 18 mm |
| Weight | 92 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 60 mm |
| Package depth | 240 mm |
| Package height | 35 mm |
| Package weight | 136 g |
| Plastic packaging weight | 0 g |
|---|---|
| Paper/cardboard packaging weight | 44 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
| Harmonized System (HS) code | 8473 3020 |
|---|
| Overload protection | Yes |
|---|
