Overview

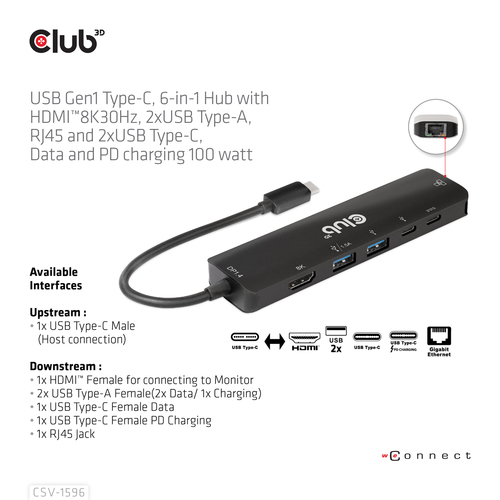

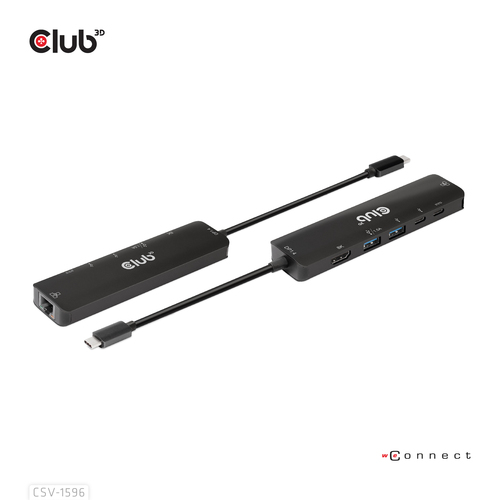

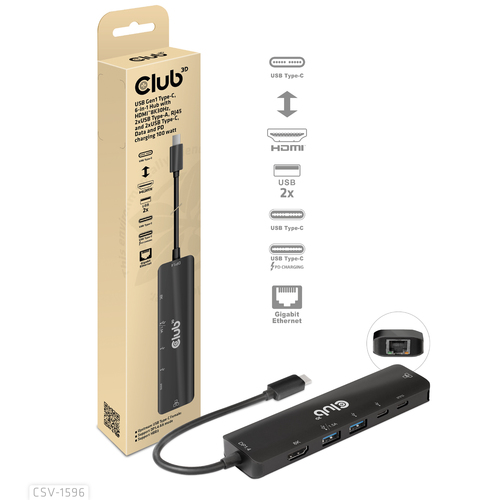

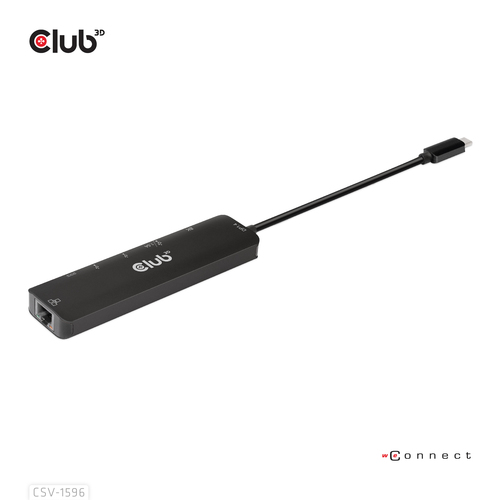

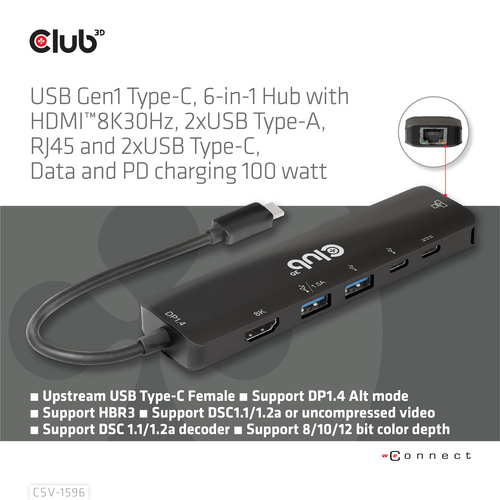

The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
Specifications
Ports & interfaces
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery revision | 3.0 |
|---|
| USB Power Delivery up to | 100 W |
|---|
| HDMI ports quantity | 1 |
|---|
| DC-in jack | No |
|---|
| HDCP | Yes |
|---|
| HDCP version | 1.4/2.3 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Network
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
|---|
Performance
| Card reader integrated | No |
|---|
| HD type | 8K Ultra HD |
|---|
| Number of displays supported | 1 |
|---|
| Maximum refresh rate | 120 Hz |
|---|
| Product colour | Black |
|---|
| High Dynamic Range (HDR) supported | Yes |
|---|
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|---|
| Plug and Play | Yes |
|---|
| Certification | ROHS, FCC, CE EMI |
|---|
Power
| Output voltage | 5 V |
|---|
| Output current | 1.5 A |
|---|
| Power consumption (max) | 7.5 W |
|---|
| Wireless charging | No |
|---|
Software
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
Weight & dimensions
| Width | 126 mm |
|---|
| Depth | 32 mm |
|---|
| Height | 35 mm |
|---|
| Weight | 89 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 70 mm |
|---|
| Package depth | 35 mm |
|---|
| Package height | 320 mm |
|---|
| Package weight | 136 g |
|---|
Packaging composition
| Plastic packaging weight | 5 g |
|---|
| Paper/cardboard packaging weight | 42 g |
|---|
| Total plastic packaging weight | 0 g |
|---|
| Total paper/cardboard packaging weight | 0 g |
|---|
Logistics data
| Harmonized System (HS) code | 8473 3020 |
|---|
Other features
| Cable length | 0.3 m |
|---|
| Cable type | Round cable |
|---|
