CLUB3D Type-C 7-in-1 hub with 2x HDMI, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port
Part number CSV-1595
CSV-1595 USB-C 7-IN-1 HUB WITH 2X HDMI, 2X USB-A, 1X RJ45, 1X 3.5MM AUDIO, 1X US
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB Power Delivery (USB PD)
10,100,1000 Mbit/s
Plug and Play
Manufacturer
CLUB 3D B.V
Part number
CSV-1595
Condition
New
Category
Cables › A/V Accessories
1GPA category
Hardware
Overview

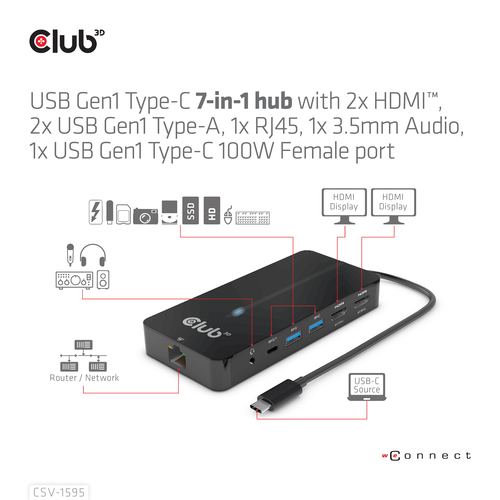

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.
Specifications

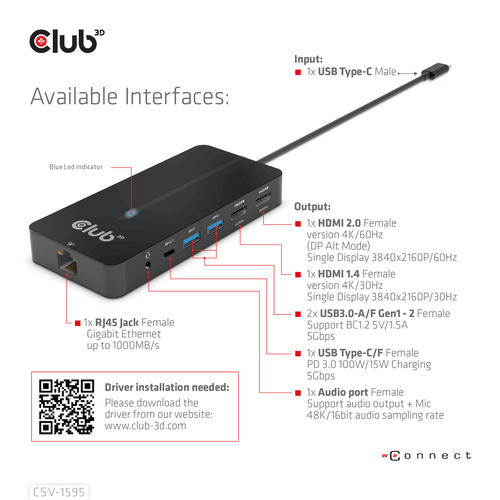

Ports & interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity
2
Combo headphone/mic port
Yes
DC-in jack
No
HDCP
Yes
HDCP version
2.2
USB Type-C DisplayPort Alternate Mode
Yes
Network
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Card reader integrated
No
HD type
4K Ultra HD
Number of displays supported
2
Maximum refresh rate
60 Hz
Product colour
Black
Hub interfaces
3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Plug and Play
Yes
Certification
ROHS, FCC, CE EMI
Power
Output voltage
5 V
Output current
1.5 A
Power consumption (max)
7.5 W
Wireless charging
No
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes

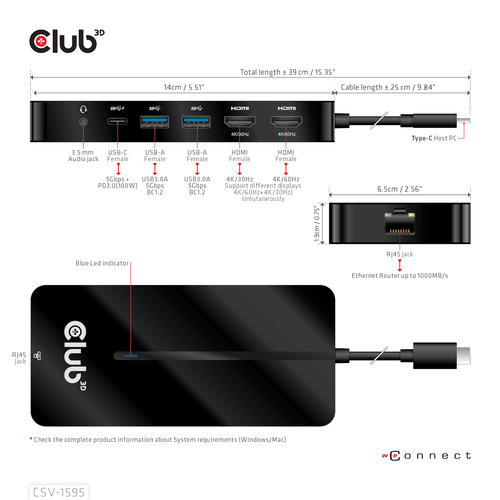

Weight & dimensions
Width
140 mm
Depth
65 mm
Height
19 mm
Weight
210 g

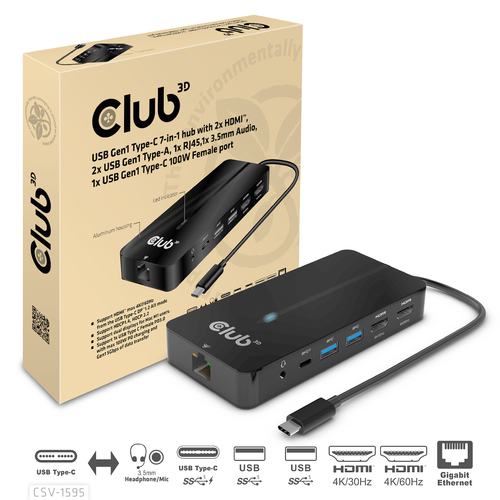

Packaging data
Quantity per pack
1 pc(s)
Package width
210 mm
Package depth
35 mm
Package height
210 mm
Package weight
286 g
Packaging composition
Plastic packaging weight
6 g
Paper/cardboard packaging weight
70 g
Total plastic packaging weight
0 g
Total paper/cardboard packaging weight
0 g
Logistics data
Harmonized System (HS) code
8473 3020
Other features
Cable length
0.25 m
Cable type
Round cable
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
