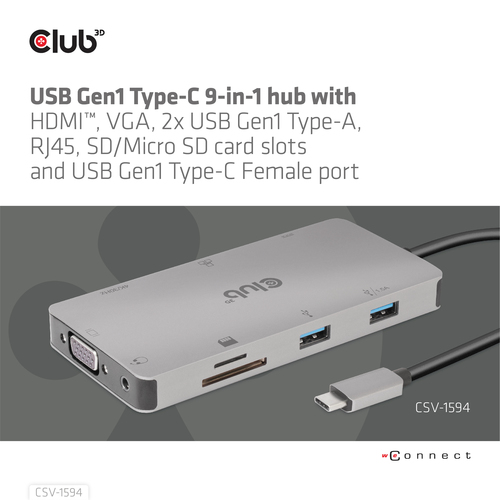

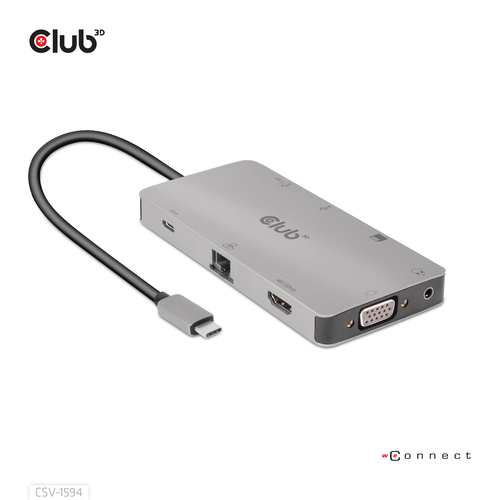

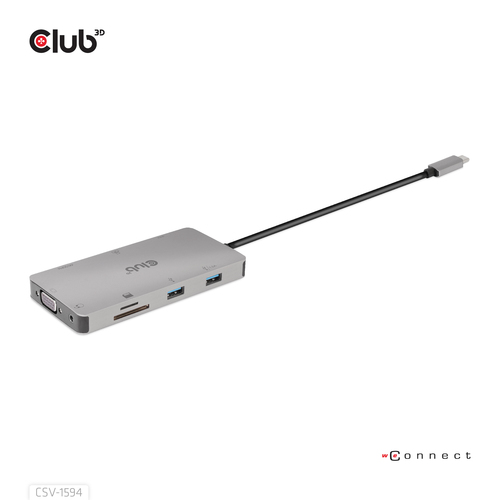

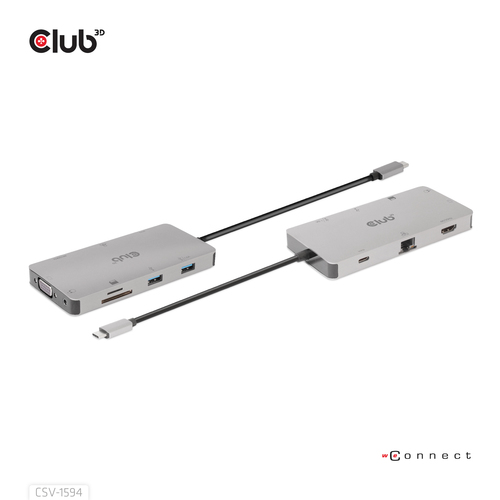

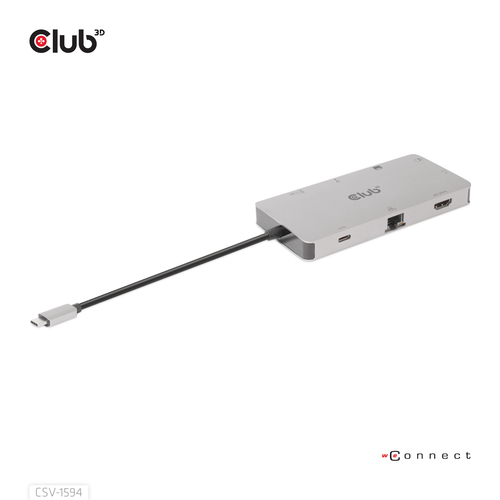

CLUB3D USB Gen1 Type-C 9-in-1 hub with HDMI, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port
Part number CSV-1594
USBC 9-IN-1 HUB WITH HDMI, VGA, 2X USB-A
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB Power Delivery (USB PD)
10,100,1000 Mbit/s
MicroSD (TransFlash), SD
Plug and Play
Manufacturer
CLUB 3D B.V
Part number
CSV-1594
Condition
New
Category
Cables › A/V Accessories
1GPA category
Hardware
Overview
The Club 3D CSV-1594 USB Gen1 Type-C 9-in-1 hub with HDMI™, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.2 Alt mode supported USB Gen1 Type-C hosts.
Specifications
Ports & interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
Combo headphone/mic port
Yes
HDCP
Yes
HDCP version
1.4
Network
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), SD
Maximum refresh rate
60 Hz
Product colour
Black, Grey

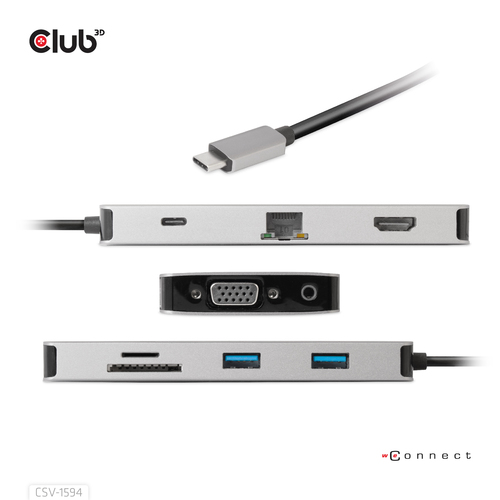

Hub interfaces
3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Plug and Play
Yes
Certification
ROHS, FCC, CE EMI
Power
Output voltage
5 V
Output current
1.8 A
Power consumption (max)
7.5 W
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Weight & dimensions
Width
125 mm
Depth
59 mm
Height
14 mm
Weight
117 g
Packaging data
Quantity per pack
1 pc(s)
Package width
70 mm
Package depth
35 mm
Package height
320 mm
Package weight
165 g

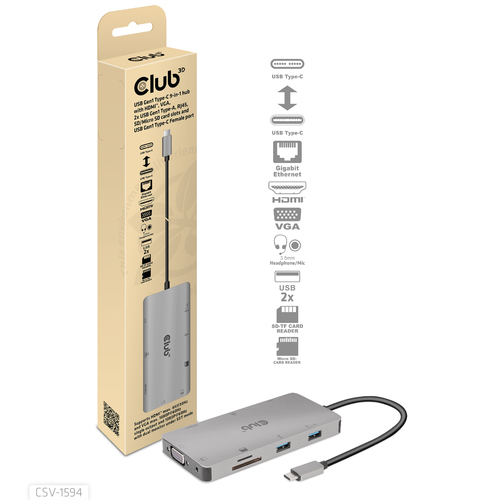

Packaging content
Quick start guide
Yes
Packaging composition
Plastic packaging weight
6 g
Paper/cardboard packaging weight
42 g
Total plastic packaging weight
0 g
Total paper/cardboard packaging weight
0 g
Logistics data
Harmonized System (HS) code
8473 3020
Other features
Cable length
0.15 m
