CLUB 3D B.V

CLUB3D USB3.2 Gen1 Type A to 2x DisplayPort™1.2 Dual Monitor 4K60Hz DisplayLink Video Splitter

Part number CSV-1477

USB A 3.1 GEN 1 TO DP 1.2 DUAL MONITOR SUPPORT 4K60HZ.IS A UNIQUE PRODUCT THAT A

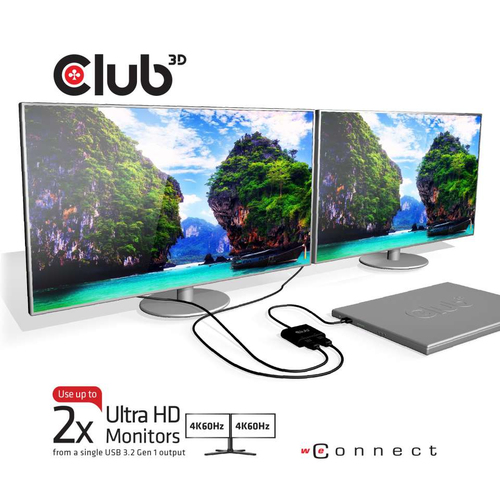

Connect 2 screens with resolutions up to 3840x 2160 at 60Hz
Works on almost all systems with a USB 3.0 port
OS Support for WIN 10, 8.1

Manufacturer: CLUB 3D B.V
Part number: CSV-1477
Condition: New
Category: Audio/Video Devices › Home Stereo/Theater Equipment
1GPA category: Hardware

Overview

SenseVision USB A to DisplayPort™ 1.2 Dual Monitor 4K 60Hz. This unique product allows you to connect 2 Screens at 4K 60Hz to any host system with a free USB A 3.1 Gen 1 port. Featuring the next generation Displaylink DL6950 SOC, your existing Notebook/PC-System/Tablet, is ready for the future. Become more efficient and accomplish more, with 2 displays delivering 4 K performance, you can have four times the screen space compared to 1080p.DisplayPort™++The Club 3D SenseVision USB A to Displayport™ 1.2 Dual Monitor 4K 60Hz has 2 Displayport™++ outputs or in other words, Displayport™ 1.2 Dual Mode. This means the "USB A to Displayport™ 1.2 Dual Monitor 4K 60Hz" is an ac-tive device and when converting the video signal to DVI or HDMI™ you must use "passive" cables or adapters to connect your screen(s).

Specifications

Ports & interfaces
Video out	2x DisplayPort
Video ports quantity	2

Features
Product colour	Black
Maximum resolution	5120 x 2880 pixels
Full HD	Yes
Maximum refresh rate	60 Hz
Cable length	0.27 m
HD-Ready	Yes
HDCP	Yes
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 5120 x 2880
Certification	RoHS, WEEE, CE
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64

Power
USB powered	Yes

Weight & dimensions

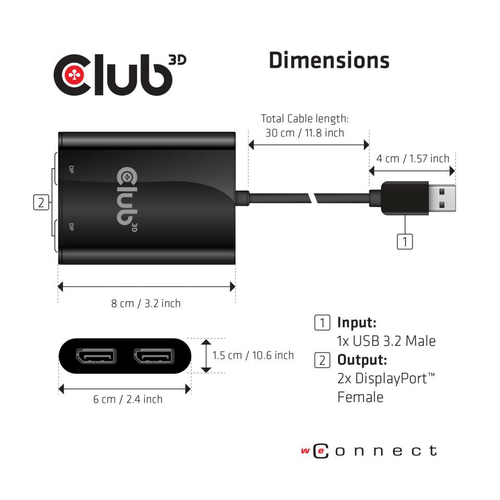

Dimensions (WxDxH)	93 x 56 x 16 mm
Weight	73 g

Packaging data
Package length	28 cm
Package width	80 mm
Package height	35 mm
Package type	Box

Logistics data
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
