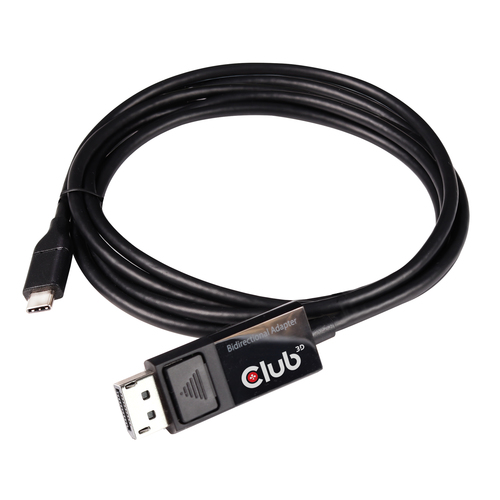

CLUB3D USB Type C Cable to DP 1.4 8K60Hz M/M 1.8m/5.9ft
Part number CAC-1557
USB TYPE C TO DP 1.4 8K CABLE
- Reversible USB Type-C connector
- Compliant to VESA DisplayPort™ Alt Mode 1.4 Standard
- Supports full link training and no link training
- Supports (U)HD resolutions up to 3840 x 2160p @ 120Hz and 8K@60Hz
- Supports 3D Video formats up to 1080p @ 120Hz
- Powered by USB Port (no external power needed)
- The cable is bidirectional
- To Support this maximum resolution its important that the source device supports USB C DisplayPort Alt Mode 1.4 - Please consult with your device manufacturer for this specification. For Example Nvidia RTX series will support this standard
- Manufacturer
- CLUB 3D B.V
- Part number
- CAC-1557
- Condition
- New
- Category
- Cables › A/V Accessories
- 1GPA category
- Hardware
Overview
CAC-1557 - The Club 3D CAC-1557 is a DisplayPort™ signal converter. The USB Type C to DisplayPort™ 1.4 Cable is the easiest solution for connecting your USB Type C source device featuring DisplayPort™ Alternate Mode to a DisplayPort™ 1.4 Monitor, Television or Projector and vice versa. Powered by the USB Type C port, the adapter requires no external power and is ideal for use with the latest notebooks / MacBook (pro) and Tablets.
Supports up to 4K UHD Resolution at 120Hz and 8K at 60Hz and HDR
The USB Type C to DisplayPort™ 1.4 Cable supports UHD resolutions up to 4K UHD @ 120Hz or 8K at 60Hz for a clear, sharp picture and HDR. The support for 120 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB Type C or DP 1.4 enabled device on a Ultra High Resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video. Does not support Dual Mode DisplayPort™ (DP++)
Compatible with all Operating Systems
The USB Type C to DisplayPort™ 1.4 Cable supports all USB Type-C devices with DisplayPort™ ALT mode 1.4 and operating systems, including and not limited to Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
Specifications
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 1.8 m |
| Connector 1 | USB Type-C |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.4 |
| Dual Link DVI | No |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 7680 x 4320 |
| Supported video modes | 1080p, 2160p, 4320p |
| Maximum refresh rate | 120 Hz |
| Product colour | Black |
| Plug and Play | Yes |
| Converter type | Active video converter |
| Certification | ROHS, FCC, and CE EMI requirements |
|---|
| Plastic packaging weight | 3 g |
|---|---|
| Paper/cardboard packaging weight | 46 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Weight | 70 g |
|---|---|
| Width | 1800 mm |
| Depth | 220 mm |
| Height | 100 mm |
| Package width | 145 mm |
|---|---|
| Package depth | 145 mm |
| Package height | 450 mm |
| Package weight | 6 g |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
|---|---|
| Manual | Yes |
| Harmonized System (HS) code | 8544 4290 |
|---|
| Compatible products | Apple macbook m1 Apple macbook m1 pro |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
