Overview
The Club 3D Ultra High Speed HDMI™ 2.1 Cable is built to handle the highest quality video- and audio signals. HDMI™ 2.1 has an increased Bandwidth of 48Gbps. The increase in maximum bandwidth compared to previous versions is achieved by increasing both the Bitrate of the data channels (from 6Gbps to 12Gbps) and the number of channels (from 3 to 4). This allows support for resolutions up to supports 10K at 120Hz! New feature included in the 2.1 Specification is Display Stream Compression (DSC) 1.2 , this is used for video formats higher than 8K with 4:2:0.
Enhanced refresh rate features: -Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid motion in games -Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank screens before content is displayed -Quick Frame Transport (QFT) reduces latency. HDMI™ 2.1 also has support for both Static- and Dynamic HDR metadata.
All HDMI™ 2.1 features are fully supported by this Club3D CAC-1373 Cable. It is the ideal solution for the ultimate future proof HDMI™ experience.
Specifications
Features
| Cable length | 3 m |
|---|
| Connector 1 | HDMI |
|---|
| Connector 2 | HDMI |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Male |
|---|
| Connector 1 form factor | Straight |
|---|
| Connector 2 form factor | Straight |
|---|
| HDMI cable type | Ultra High Speed HDMI cable |
|---|
| Product colour | Black |
|---|
| HDMI version | 2.1 |
|---|
| 3D | Yes |
|---|
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
|---|
| Supported video modes | 2160p, 4320p |
|---|
| Audio Return Channel (ARC) | Yes |
|---|
| Data transfer rate | 48 Gbit/s |
|---|
| High Dynamic Range (HDR) supported | Yes |
|---|
| Maximum refresh rate | 120 Hz |
|---|

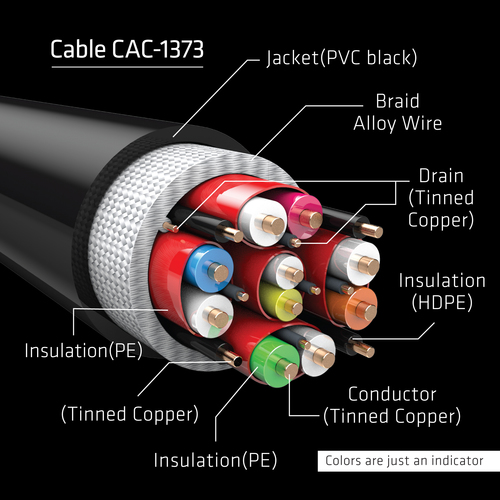

| AWG wire size | 28 |
|---|
| Connector contacts plating | Gold |
|---|
| Cable type | Round cable |
|---|
| Enhanced Audio Return Channel (eARC) | Yes |
|---|
| Plug and Play | Yes |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Weight | 216 g |
|---|
Packaging content
| Manual | No |
|---|
Packaging data
| Package width | 175 mm |
|---|
| Package depth | 175 mm |
|---|
| Package height | 45 mm |
|---|
| Package weight | 282 g |
|---|
| Package type | Box |
|---|
| Quantity per pack | 1 pc(s) |
|---|
Packaging composition
| Plastic packaging weight | 6 g |
|---|
| Paper/cardboard packaging weight | 63 g |
|---|
| Total plastic packaging weight | 30 g |
|---|
| Total paper/cardboard packaging weight | 315 g |
|---|
Logistics data
| Country of origin | China |
|---|
| Harmonized System (HS) code | 8544 4290 |
|---|
