CLUB3D Mini DisplayPort 1.4 Cable HBR3 8K60Hz Male / Male 2 mtr. / 6.56 Ft.
Part number CAC-1164
MDP1.4 - MDP1.4 M_M 2M/ 6.5FT HBR3 CABLE
- Fully DisplayPort™ Version 1.4 Compliant, HBR3, 32.4Gbps
- Support for Display Stream Compression (DSC) 1.2
- Support resolutions up to 8K @ 60Hz
- Manufacturer
- CLUB 3D B.V
- Part number
- CAC-1164
- Condition
- New
- Category
- Cables › A/V Accessories
- 1GPA category
- Hardware
Overview

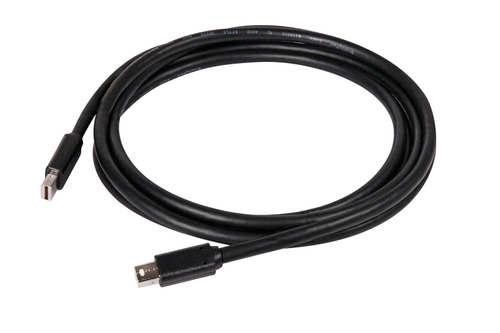

The Club 3D Mini DisplayPort™ 1.4 HBR3 cable enables the connection of your Mini DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other Mini DisplayPort™ supported device. Mini DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.
The soft UltraFlex jacket protects the cable from bends and deformation damage.
Share
Features
• Fully DisplayPort™ Version 1.4 Compliant, HBR3, 32.4Gbps
• Support for Display Stream Compression (DSC) 1.2
• Support for Forward Error Correction
• Support for up to 32 Inline Audio Channels
• Downwards compatible to older Displayport standards
• Support resolutions up to 8K @ 60Hz
Specifications
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Supported video modes | 2160p, 4320p |
| Maximum refresh rate | 144 Hz |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2 |
| 3D | Yes |
| Cable length | 2 m |
| Connector 1 | Mini Displayport |
| Connector 2 | Mini Displayport |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Number of shielding layers | 3 |
| Data transfer rate | 32.4 Gbit/s |
| Plug and Play | Yes |
| Connector gender | Male/Male |
| Cable type | Round cable |
| Compliance certificates | RoHS |
|---|---|
| Certification | RHOS, CE, FCC |
| Weight | 91 g |
|---|
| Package width | 145 mm |
|---|---|
| Package depth | 145 mm |
| Package height | 45 mm |
| Package type | Box |
| Paper/cardboard packaging weight | 63 g |
| Plastic packaging weight | 5 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Quantity per pack | 1 pc(s) |
|---|
| Harmonized System (HS) code | 8544 4290 |
|---|
| Length | 4000 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
