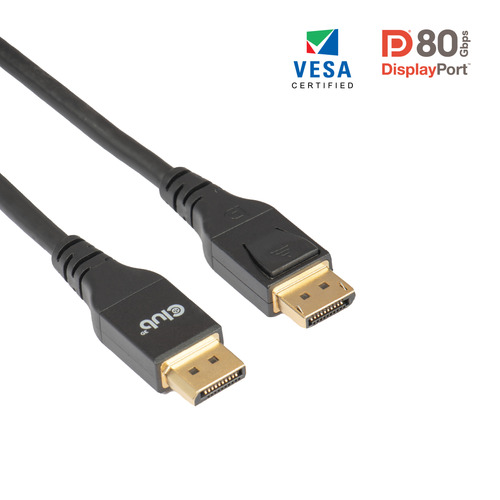

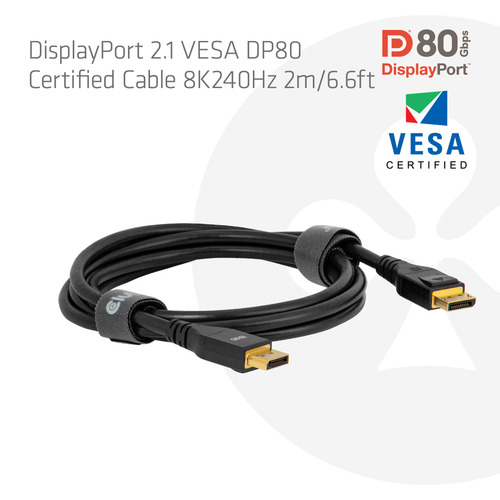

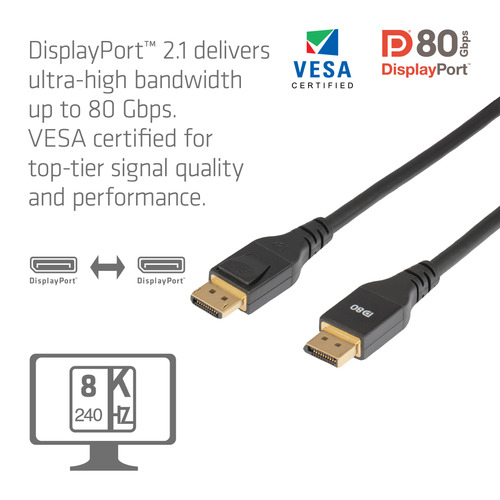

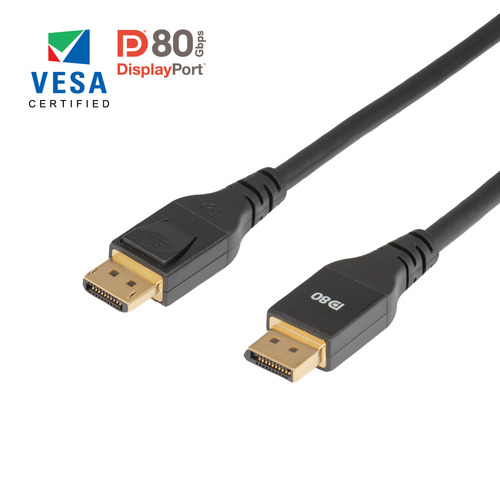

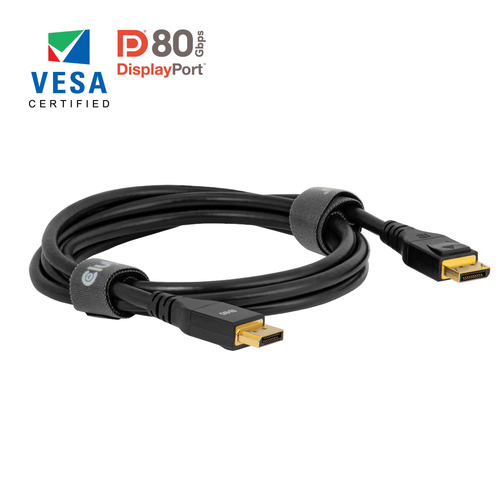

CLUB3D DisplayPort™ 2.1 VESA DP80 Certified Cable 8K240Hz 2m/6.56ft
Part number CAC-1094
DP80 VESA 2M 656FT CABLE M-M DP80 CERTIFIED CABLE 2M/656FT
- Features:
- Fully DisplayPort™ Version 2.1 Compliant
- UHBR10/13.5/20 up till 80 Gbps DP80 Compliant
- New Enhanced DP2.1 spec connector
- Fully Bidirectional 26 AWG
- VESA Certified
- Support resolutions up to 8K240Hz or 10K60Hz
- Support for up to 32 Inline Audio Channels
- Downwards compatible to older DisplayPort™ standards
- Manufacturer
- CLUB 3D B.V
- Part number
- CAC-1094
- Condition
- New
- Category
- Cables › A/V Accessories
- 1GPA category
- Hardware
Overview
Description:
• EXCEPTIONAL CABLE LENGTH: This is the first DP80 cable to reach
two metres.
• HIGH PERFORMANCE: The DP80 is the top-tier version of the
DisplayPort™ 2.1 standard. It can support a video signal of up to
8K60Hz with HDR without compression. With DSC enabled, the
frequency can be increased to 8K240Hz.
• VESA CERTIFIED: This ensures that the highest standards are met in
terms of both physical and electrical quality.
• QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain
reliefs for durability; Twisted Pair wire with braided alloy shield for
enhanced EMI protection.
Specifications
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 2.1 |
| Maximum resolution | 10240 x 4320 pixels |
| Supported graphics resolutions | 7680 x 4320, 10328 x 7760 |
| Supported video modes | 4320p |
| Maximum refresh rate | 240 Hz |
| Display Stream Compression (DSC) | Yes |

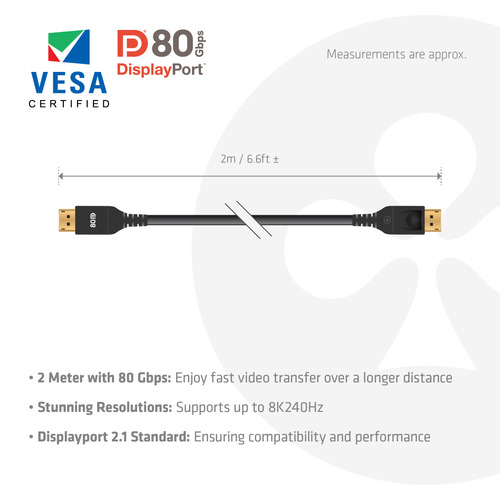

| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Magnetically shielded | Yes |
| AWG wire size | 26 |
| Data transfer rate | 80 Gbit/s |
| Connector material | Gold |
| Plug and Play | Yes |
| Cable type | Round cable |
| Weight | 150 g |
|---|
| Package width | 175 mm |
|---|---|
| Package depth | 175 mm |
| Package height | 45 mm |
| Package weight | 216 g |
| Paper/cardboard packaging weight | 63 g |
| Plastic packaging weight | 3 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Harmonized System (HS) code | 8544 4290 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
