Overview

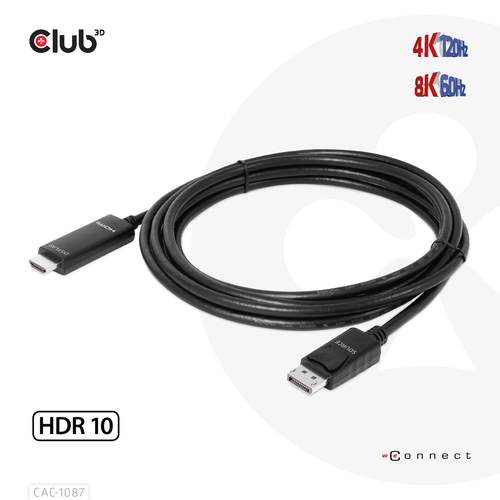

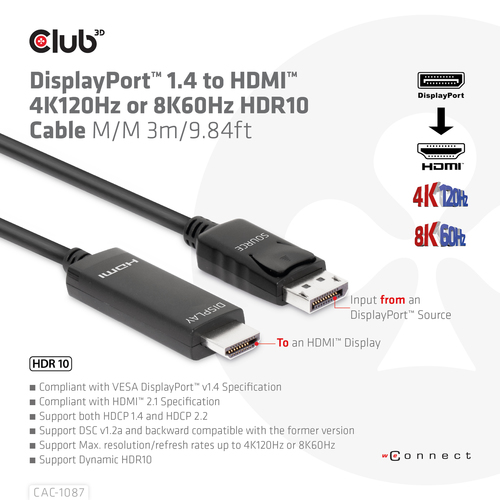

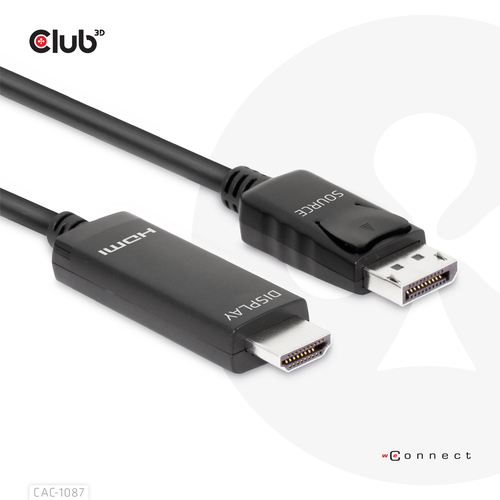

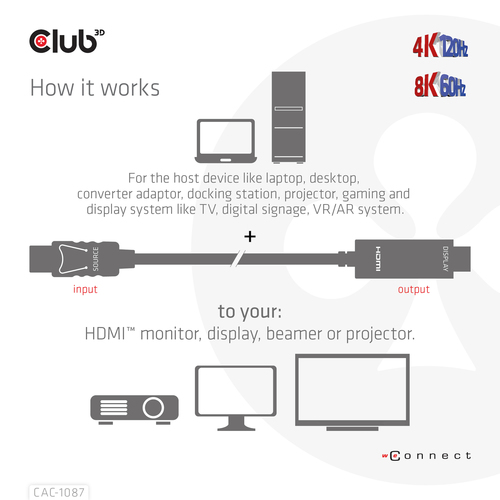

The Club 3D CAC-1087 is the perfect solution to connect to any HDMI™ 4K120Hz or 8K60Hz ready displays*. If you have a DisplayPort™ 1.4 ready PC or any other device that lacks the new HDMI™ 4K120Hz or 8K60Hz specification, the Club3D CAC-1087 will be the simple way to upgrade your device and connect to your new TV*.
With its DP1.4 DSC video compression technology, this adapter is able to convert DP1.4 video signals to HDMI™, supporting video display resolutions up to 8K (7680x4320/60HZ or 3840x2160/120Hz) and creating life like colors and movements with HDR10 giving users the ultimate visual experience. The Adapter is powered thru the DP™ port.
Specifications
Features
| Connector 1 form factor | Straight |
|---|
| Connector 2 form factor | Straight |
|---|
| Connector contacts plating | Gold |
|---|
| Cable length | 3 m |
|---|
| Connector 1 | DisplayPort |
|---|
| Connector 2 | HDMI |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Male |
|---|
| HDMI version | 2.1 |
|---|
| HDCP | Yes |
|---|
| HDCP version | 1.4/2.2 |
|---|
| DisplayPort version | 1.4 |
|---|
| High Dynamic Range (HDR) supported | Yes |
|---|
| Maximum resolution | 7680 x 4320 pixels |
|---|
| Maximum refresh rate | 120 Hz |
|---|
| Refresh rate at maximum resolution | 120 Hz |
|---|
| Product colour | Black |
|---|
| Plug and Play | Yes |
|---|
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
|---|
Certificates
| Certification | ROHS, FCC, CE EMI |
|---|
Packaging composition
| Plastic packaging weight | 5 g |
|---|
| Paper/cardboard packaging weight | 70 g |
|---|
| Total plastic packaging weight | 0 g |
|---|
| Total paper/cardboard packaging weight | 0 g |
|---|
Weight & dimensions

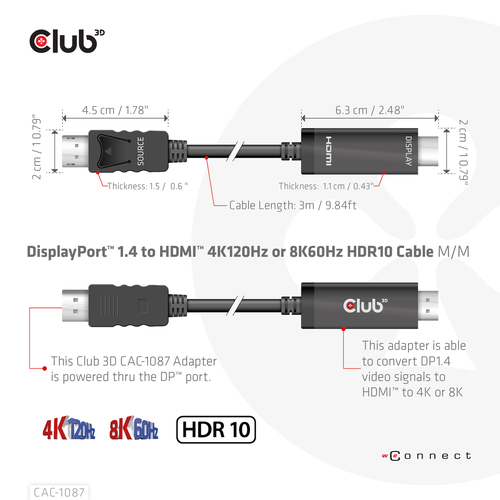

| Connector 1 dimensions (WxDxH) | 20 x 45 x 15 mm |
|---|
| Connector 2 dimensions (WxDxH) | 20 x 63 x 11 mm |
|---|
| Weight | 139 g |
|---|
Packaging data
| Package width | 210 mm |
|---|
| Package depth | 35 mm |
|---|
| Package height | 210 mm |
|---|
| Package weight | 214 g |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Logistics data
| Harmonized System (HS) code | 8544 4290 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
