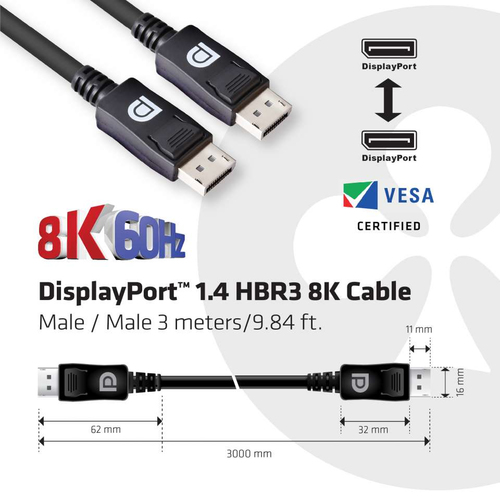

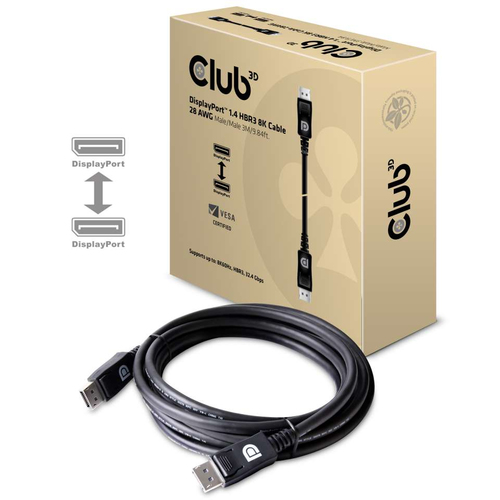

CLUB3D DisplayPort 1.4 HBR3 8K 28AWG Cable M/M 3m /9.84ft
Part number CAC-1060
DP1.4 TO DP1.4 HBR3 CABLE M/M 3M/9,84FT
- Fully supports DisplayPort 1.4 specifications
- Certified by Vesa, HBR3, 32.4Gbps, DSC1.2, 28AWG
- 3Meter quality Cable with Latching connectors
- Manufacturer
- CLUB 3D B.V
- Part number
- CAC-1060
- Condition
- New
- Category
- Cables › A/V Accessories
- 1GPA category
- Hardware
Overview
The Club 3D DisplayPort™ 1.4 HBR3 8K cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution
Monitor or other DisplayPort™ supported device. DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.

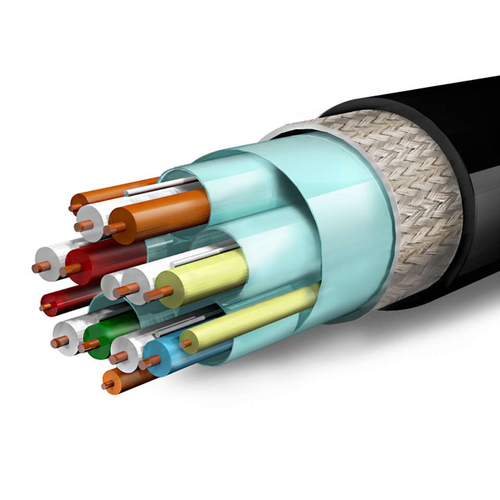

It features locking DisplayPort™ connectors providing a secure, dependable connection. Simply press the built-in one-touch latch button to unlock the connector. The soft UltraFlex jacket protects the cable from bends and deformation damage.
Specifications
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 7680 x 4320 |
| Supported video modes | 4320p |
| Maximum refresh rate | 60 Hz |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| 3D | Yes |
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Latching connectors | Yes |
| Product colour | Black |
| AWG wire size | 28 |
| Data transfer rate | 32.4 Gbit/s |
| Plug and Play | Yes |
| Cable type | Round cable |
| Compliance certificates | RoHS |
|---|---|
| Certification | Rohs, WEEE, CE |
| Weight | 219 g |
|---|
| Package width | 175 mm |
|---|---|
| Package depth | 45 mm |
| Package height | 175 mm |
| Package weight | 283 g |
| Package type | Box |
| Paper/cardboard packaging weight | 63 g |
| Plastic packaging weight | 5 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Quantity per pack | 1 pc(s) |
|---|
| Harmonized System (HS) code | 8544 4290 |
|---|---|
| Products per master (outer) case | 10 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
