Chief Suspended Ceiling Projector System with 2-Gang Filter & Surge - SYSAUWP2

Overview

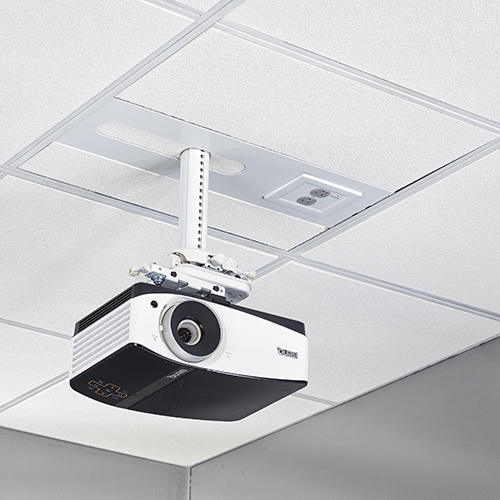

Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX® non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

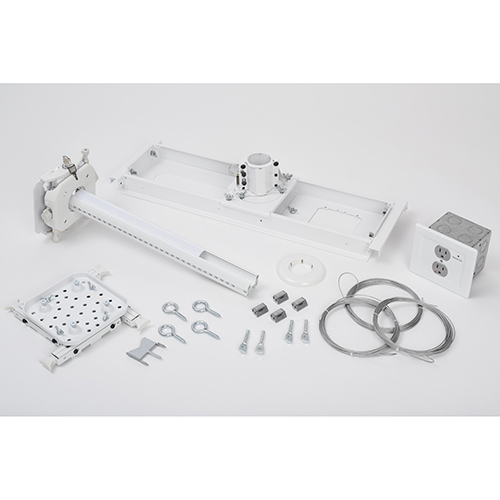

- System comes out of box in the order needed with mount and column preassembled

- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids

- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids

- Detachable electric plate for pre-wiring

- Compatible with popular 2 gang adjustable mud rings

- Tool-Free Microzone adjustment eliminates the need for set screws

- Centris Technology enables effortless fingertip positioning with new tool-free lockdown

- Adjustable 0-12" column with dual inlay channels for high and low voltage cables

- Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system

- Improved universal interface for easier lock/unlock at projector connection

- Surge and Filter Module

- Non-volatile spike protection with LED power indicator

- Non-sacrificial multi-stage technology

- Non-current limiting design passes full power on a regular circuit; redundant protection circuits

- Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime

- Line filter reduces common and differential mode noise by up to 40 dB

- Rated for 125V~, 60Hz, 15 A

- 1800 watt maximum

- Ferrite toroid based EMI Filter

- Withstand rating of 240 VAC continuous without damage or loss of protection
