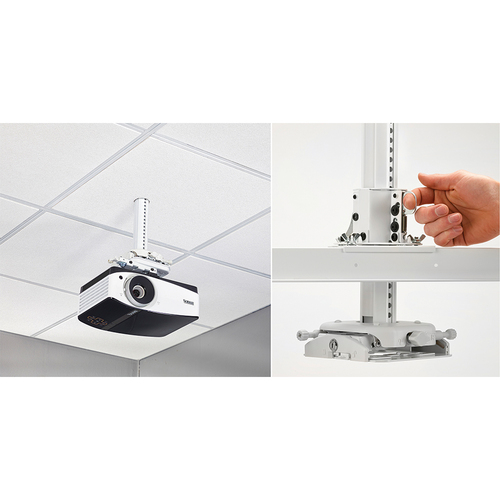

Chief Suspended Ceiling Projector System with Storage - SYS474UW

Overview

Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.

This option includes a flexible and scalable plenum-rated storage box

Features

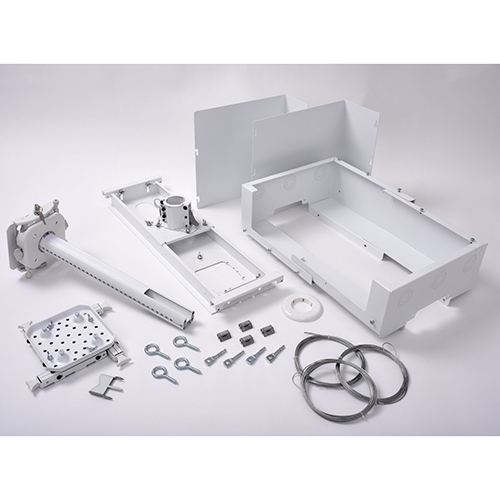

- System comes out of box in the order needed with mount and column preassembled

- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids

- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids

- Detachable electric plate for pre-wiring

- Compatible with popular 2 gang adjustable mud rings

- Tool-FreeMicrozone adjustment eliminates the need for set screws

- CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown

- Adjustable 0-12" column with dual inlay channels for high and low voltage cables

- Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system

- Improved universal interface for easier lock/unlock at projector connection

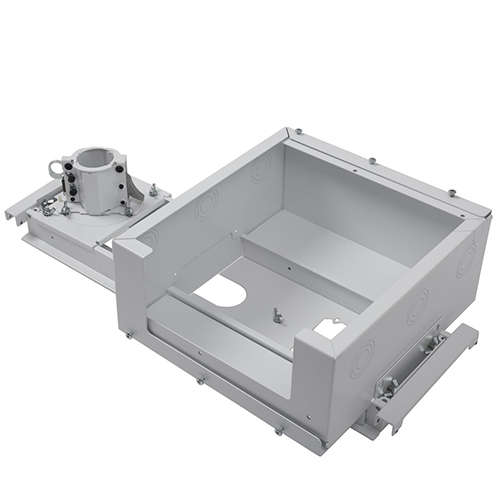

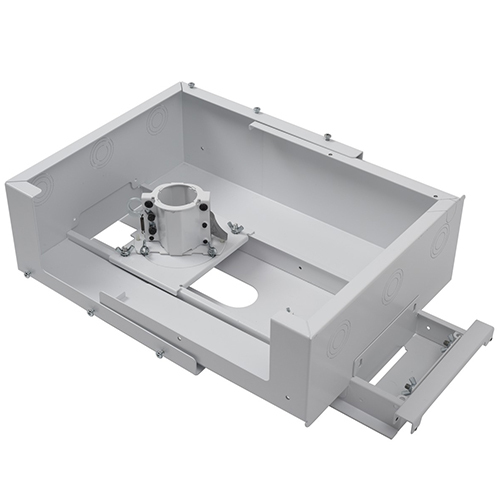

- Storage Features

- Plenum-rated enclosure is scalable to fit AV equipment

- Shift enclosure along tile bridge to avoid plenum interferences

- Removable covers enable side access in shallow plenum spaces and full access from above

- Six trade size conduit knockouts in 0.5", 1", 1.5" (12, 25, 38 mm)

- Flexible conduit knockouts allow high voltage conduit to pass through plenum box when the power is facing into the room below.
