Chief FitTM Menu Board Wall Mount Interfaces
Part number RMB400
FIT MENU-BOARD INTERFACE, 400 MM
- Low-profile, adjustable depth leveling pad 0.56” adjustment

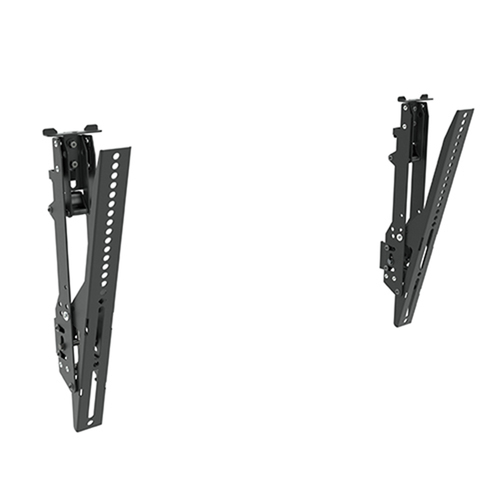

- Tilting interfaces can be locked at 0°, 5°, 10°, and 15°

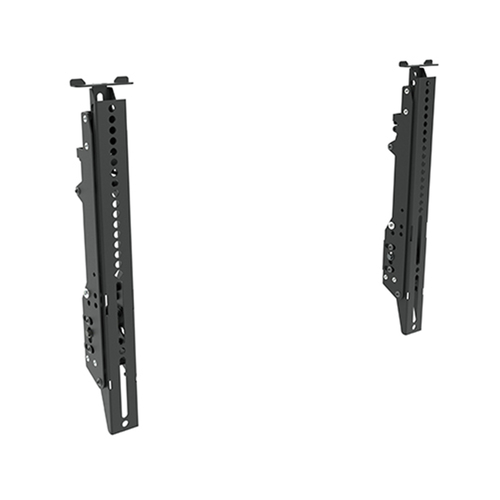

- Interface brackets feature a locking latch to secure them to strut channel
- Wide open back wall allows for device mounting and cable routing behind displays
- Optional storage box provides a clean installation (PAC525, PAC526)
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- RMB400
- Condition
- New
- Category
- Accessories › Projector Accessories
- 1GPA category
- Hardware
Overview

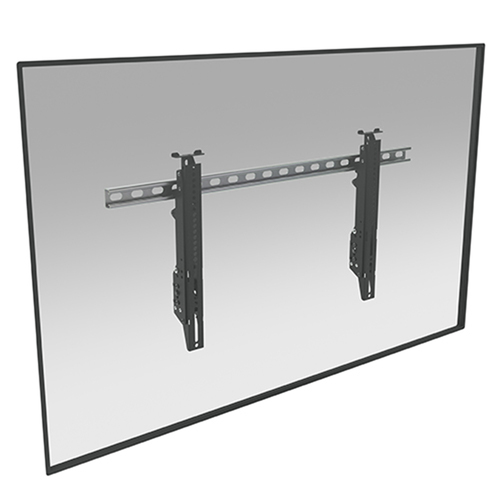

This quick and easy to install multi-display menu board tilting display interface hangs on 12 or 14 gauge 1-5/8” strut channel (not included)
Specifications
| Maximum weight capacity | 34.02 kg |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Wall |
| Tilt angle range | 0 - 15° |
|---|---|
| Tilt adjustment | Yes |
| Product colour | Black |
|---|---|
| Certification | ULCERT |
| Width | 76.2 mm |
|---|---|
| Depth | 55.1 mm |
| Height | 443.2 mm |
| Package width | 558 mm |
|---|---|
| Package depth | 139 mm |
| Package height | 139 mm |
| Package weight | 2.79 kg |
| Orientation | Landscape/Portrait |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
