Chief Proximity® Six Outlet PAC527 Power Kit

Overview

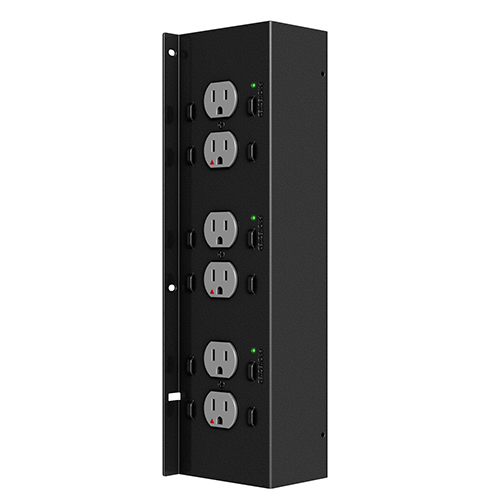

The PAC527P6-KIT is a power retrofit kit with six outlets for Chief PAC527 in-wall boxes featuring high-performance, isolated ground, non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

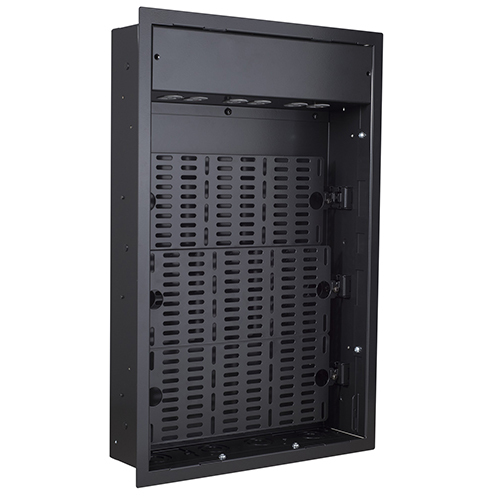

Compatible with PAC527, PAC527F, PAC527F, PAC527FC, PAC527FCW, and PAC527FW in-wall boxes

Six NEMA 5-15R outlets

Non-volatile spike protection with LED power indicator

Non-sacrificial multi-stage technology

Non-current limiting design passes full power on a regular circuit; redundant protection circuits

Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime

Line filter reduces common and differential mode noise by up to 40 dB

Rated for 125 VAC, 60 Hz, 15 A

1875 watt maximum

Ferrite toroid based EMI Filter

Withstand rating of 240 VAC continuous without damage or loss of protection

Temperature Range: 30 F to 104 F

Power Requirements:

125 VAC

15 A

60 Hz
