Chief Proximity® Extra-Large In-Wall Storage Box with Flange, Cover, and Lever LockTM -PAC527LFC
Part number PAC527LFC
LG INWALL BOX 14.25X22 LLFLGCVRBK

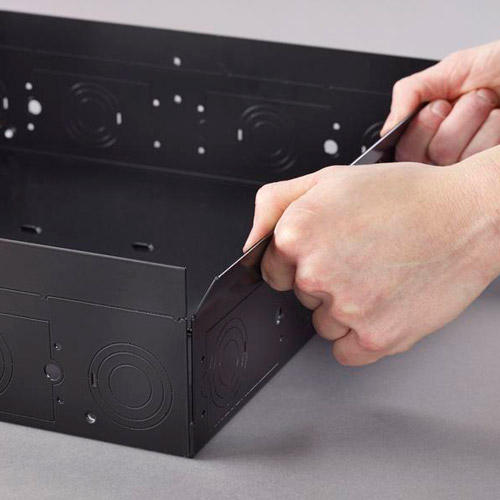

- Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
- Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
- Pre- and post-construction installation options
- Knockouts for single gang outlets and 1 ¼”, 1", and ½" conduit
- Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
- Patented universal hole pattern simplifies mounting of small devices
- Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations

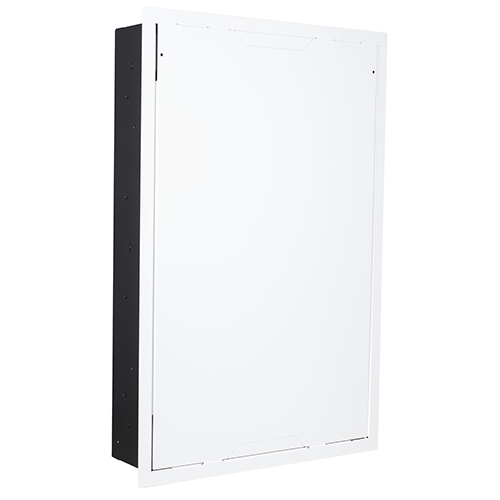

- Paintable black flange and cover to blend in any environment
- Allows for AV devices to be mounted in advance before terminating cables on site

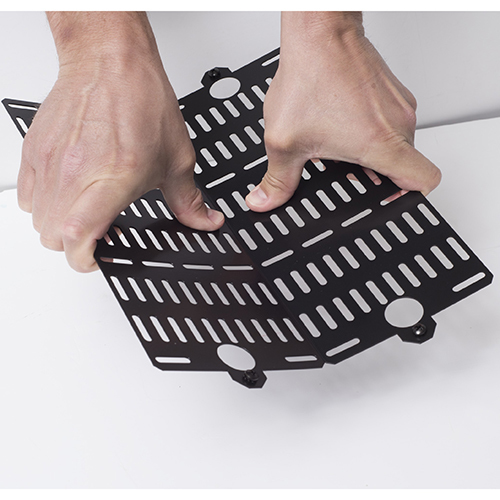

- PACL2 plate can be snapped in half to create two smaller sections
- Printable backplane template for planning purposes
- Additional PACL2 Lever Lock™ plates can be purchased separately for even more mounting options
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- PAC527LFC
- Condition
- New
- Category
- Accessories › A/V Accessories
- 1GPA category
- Hardware
Overview

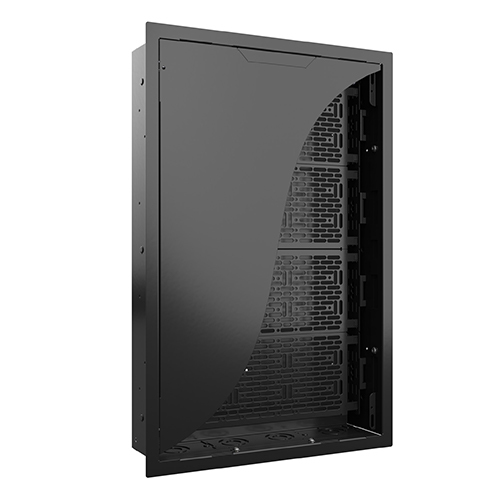

The new PAC527LFC now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box. The PAC527LFC also includes a paintable black flange and cover to blend into any space aesthetics.
Lever Lock™ plates are compatible with Middle Atlantic Products’ Forward Cable Management Solutions.
Optionally also include one of the following power protection options:
- Two outlet Power Filter Kit PACPC1
- Four outlet Power Filter and Surge Protection Kit PAC527P4-KIT
- Six outlet Power Filter and Surge Protection Kit PAC527P6-KIT
- Two outlet IP controlled Select Series Compact PDU with RackLink™ from Middle Atlantic Products
Specifications
| Type | Wall mounted rack |
|---|---|
| Maximum weight capacity | 4.5 kg |
| Product colour | Black |
| Material | Metal |
| Certification | ULCERT |
| Width | 558.8 mm |
|---|---|
| Depth | 99.1 mm |
| Height | 361.9 mm |
| Weight | 18.1 kg |
| Package weight | 9.8 kg |
|---|
| Harmonized System (HS) code | 85381000 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
