CHIEF MANUFACTURING

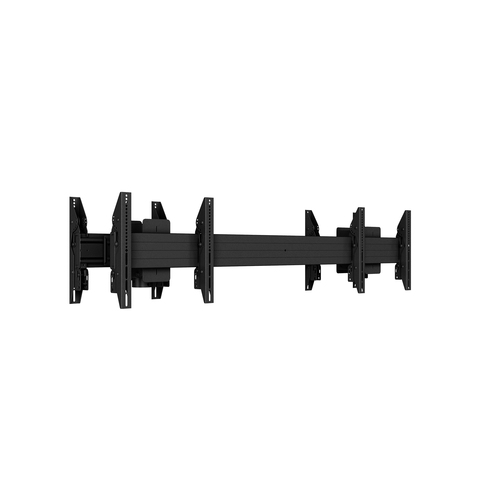

Chief Outdoor Flat Panel Back-to-Back 2x1 Ceiling and Pedestal Mount
Part number OLCB2X1U
ODM LFP CEILING 2X1 B2B MOUNT
- Weatherproof design meets UL 2442 Part 2 – Suitable for Outdoor Use with corrosion resistant paint, UV-rated plastics and stainless-steel hardware.
- The system comes in three pieces, the mount, column and plate for better customization to fit the particular installation requirements.
- The four-step installation process keeps each piece separate for a safer, more manageable lifting load
- Tilt range of +7.6 to -20 degrees has set locking points to eliminate guesswork when adjusting multiple displays
- Universal interface fits most indoor and outdoor displays with up to 800 x 400 mm max VESA pattern
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- OLCB2X1U
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview
The OLCB1U outdoor ceiling and pedestal mount is built to withstand rain, humidity and ocean air, sun exposure and high winds. Wind-compatible to 2000 ft-lbs maximum moment force – used in engineering calculations to ensure a wide range of install configurations meet local safety requirements. Contact Legrand | AV Customer Care for additional information. Tilt range of +7.6 to -20 degrees has set locking points to eliminate guesswork when adjusting multiple displays. Can be ceiling or floor mounted.
Specifications
| Maximum weight capacity | 56.7 kg |
|---|---|
| Minimum screen size | 106.7 cm (42") |
| Number of displays supported | 4 |
| Maximum weight capacity (per display) | 56.7 kg |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 800 x 400,200 x 100 mm |
| Tilt angle range | -20 - 7.6° |
|---|---|
| Tilt adjustment | Yes |
| Product colour | Black |
|---|---|
| Certification | TAA,ULCERT |
| Package width | 189.2 mm |
|---|---|
| Package depth | 29.6 mm |
| Package height | 26.7 mm |
| Package weight | 37.3 kg |
| Compliance certificates | TAA |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
