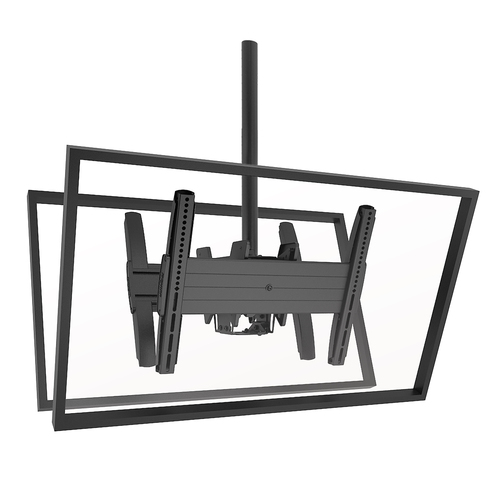

Chief MCB1U, Fusion® Medium Flat Panel Ceiling Mounts
Part number MCB1U
MCB1U, FUSION MEDIUM FLAT PANEL CEILING MOUNTS
- Maximum weight capacity: 56.7 kg Black
- Maximum screen size: 127 cm (50")
- Mounting type: Ceiling
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- MCB1U
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview
Chief's FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for medium flat panel screens. Great for digital signage installations.
- Ceiling plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
- Stackable on a single pole when used with CPA columns
Specifications
| Maximum weight capacity | 56.7 kg |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 2 |
| Maximum screen size | 127 cm (50") |
| Mounting type | Ceiling |
| Tilt angle range | -20 - 5° |
|---|
| Product colour | Black |
|---|---|
| Certification | ULCERT |
| Width | 529 mm |
|---|---|
| Depth | 259 mm |
| Height | 420 mm |
| Package weight | 14.3 kg |
|---|
| Harmonized System (HS) code | 85299097 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
