CHIEF MANUFACTURING

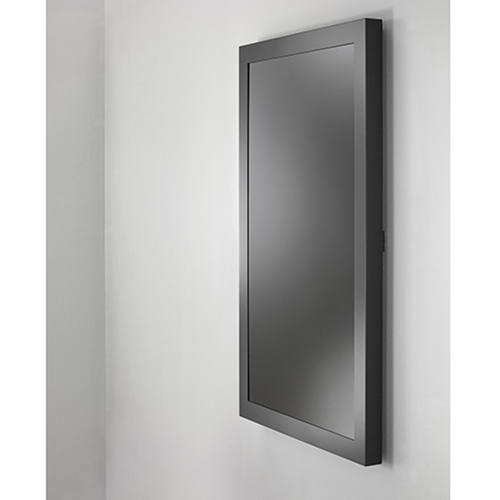

Chief ImpactTM On-Wall Kiosk with Protective Glass - Portrait 75 Inch Black
Part number LW75UBPG
75 PORTRAIT ON-WALL KIOSK W/GLASS BLK
- Integrated with factory bonded 5/32” tempered glass providing protection for your LCD display

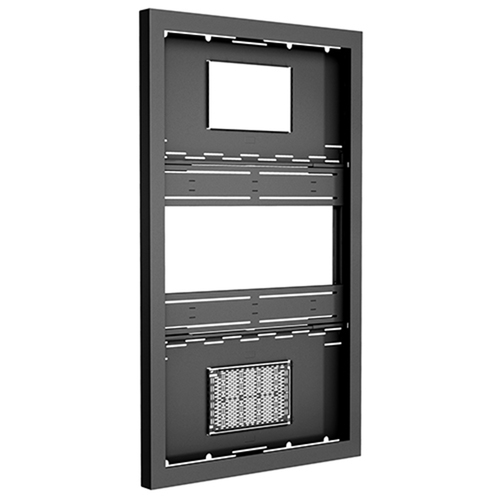

- Depth-adjustable exterior frame supports a wide range of displays
- A wall protrusion of 4" (101mm) or less can be obtained by using flat panels less than 2.75" (70mm) in depth
- Integrated wall reveal compensates for uneven walls to keep the frame plumb and provides passive cooling

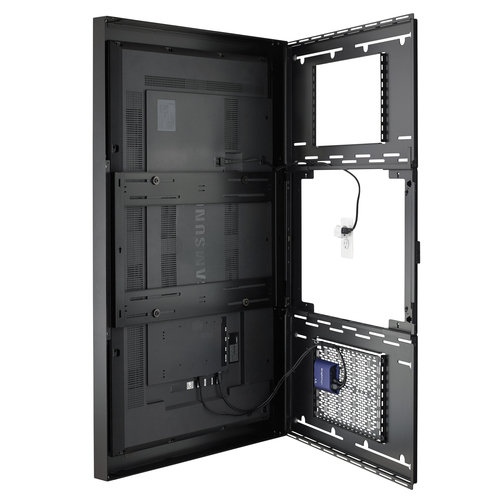

- Exclusive design keeps the display mounted to the frame when opened for unparalleled service and maintenance access

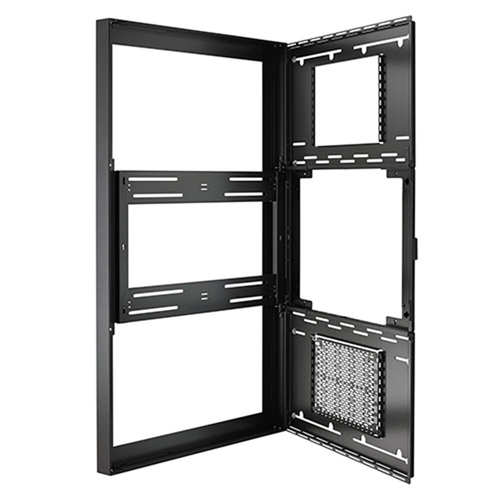

- Reversible hinges to avoid obstructions for installation and service
- Engagement latch can be secured with tamperproof hardware
- Multiple storage options available

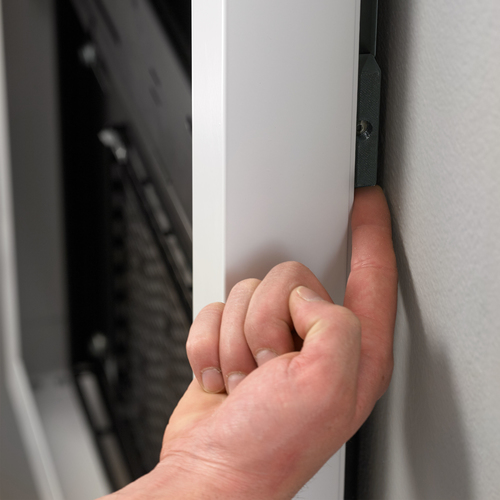

- Middle Atlantic’s Lever LockTM technology is integrated to avoid cutting into walls
- Large empty center backing enables use with in-wall boxes
- Compatible with PAC525 and PAC526 series in-wall boxes, including power options
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- LW75UBPG
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview
The Impact™ On-Wall Kiosk brings new flexibility to the digital signage enclosure market while maintaining a sleek aesthetic to complement a variety of environments. The integrated 5/32” thick tempered glass is factory bonded to the enclosure with industrial adhesives. Providing protection for your LCD display from sharp objects and common Impact™s.
Specifications
| Maximum weight capacity | 61.23 kg |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Wall |
| Minimum VESA mount | 400 x 400 mm |
| Maximum VESA mount | 600 x 600 mm |
| Panel mounting interface | 400 x 400 mm |
| Distance to the wall (min) | 7.6 cm |
|---|---|
| Distance to the wall (max) | 12.7 cm |
| Product colour | Black |
|---|---|
| Certification | TAA |
| Weight | 16.7 kg |
|---|
| Package weight | 86.2 kg |
|---|
| Packaging content | Metal Stud Mounting Brackets Protective Covers Thermal Management |
|---|
| Easy to install | Yes |
|---|---|
| Orientation | Portrait |
| Compliance certificates | TAA |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
