CHIEF MANUFACTURING
Chief LW40UWPG signage display mount 101.6 cm (40") White
Part number LW40UWPG
40 PORTRAIT ON-WALL KIOSK W/GLASS WHT
- Integrated with factory bonded 5/32” tempered glass providing protection for your LCD display

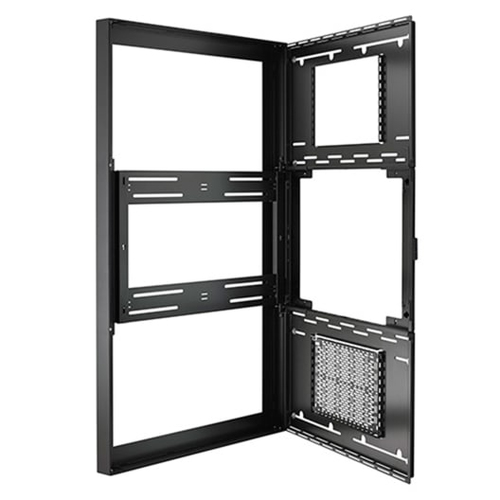

- Depth-adjustable exterior frame supports a wide range of displays

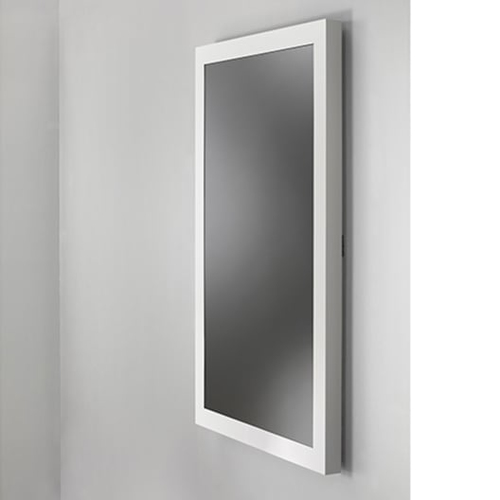

- A wall protrusion of 4" (101mm) or less can be obtained by using flat panels less than 2.75"(70mm) in depth

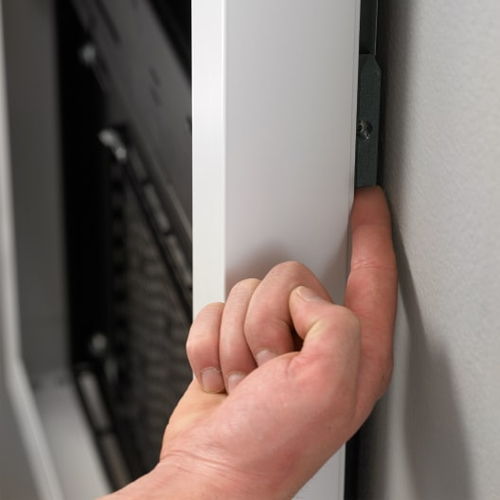

- Integrated wall reveal compensates for uneven walls to keep the frame plumb and provides passive cooling

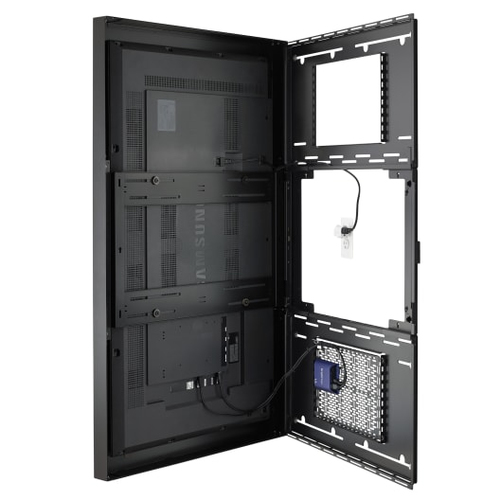

- Exclusive design keeps the display mounted to the frame when opened for unparalleled service and maintenance access
- Reversible hinges to avoid obstructions for installation and service

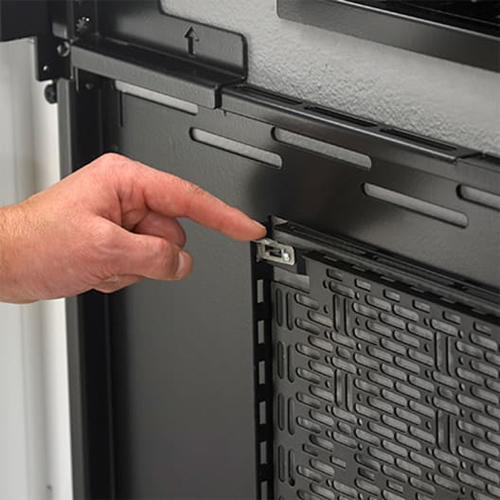

- Engagement latch can be secured with tamperproof hardware
- Multiple storage options available

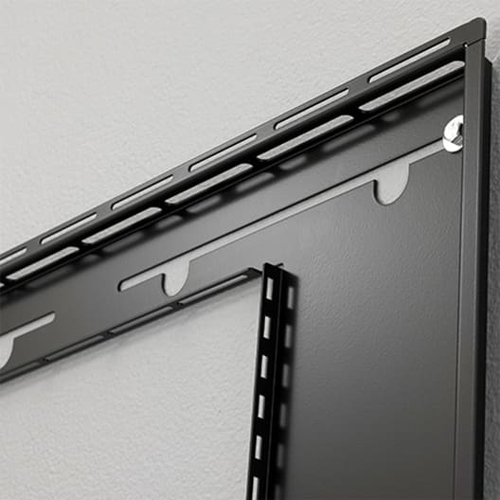

- Middle Atlantic’s Lever LockTM technology is integrated to avoid cutting into walls
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- LW40UWPG
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview

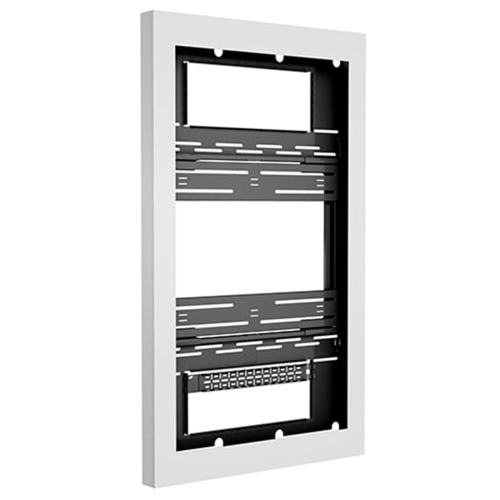

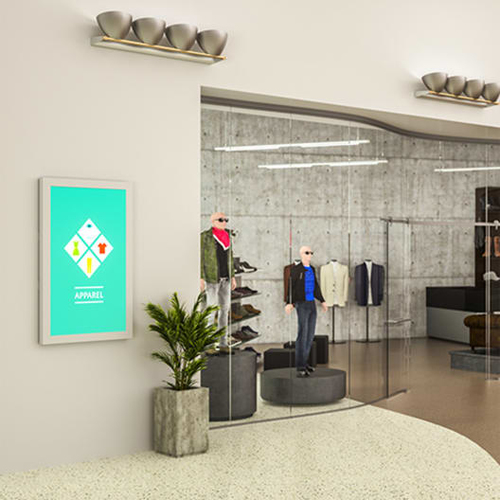

The Impact™ On-Wall Kiosk brings new flexibility to the digital signage enclosure market while maintaining a sleek aesthetic to complement a variety of environments. The integrated 5/32” thick tempered glass is factory bonded to the enclosure with industrial adhesives. Providing protection for your LCD display from sharp objects and common Impact.
Specifications
| Maximum weight capacity | 38.5 kg |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 101.6 cm (40") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 400 |
| Distance to the wall (min) | 7.6 cm |
|---|---|
| Distance to the wall (max) | 12.7 cm |
| Product colour | White |
|---|---|
| Certification | UL Listed |
| Package weight | 16.7 kg |
|---|
| Packaging content | Metal Stud Mounting Brackets Protective Covers Thermal Management |
|---|
| Easy to install | Yes |
|---|---|
| Orientation | Portrait |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
