CHIEF MANUFACTURING

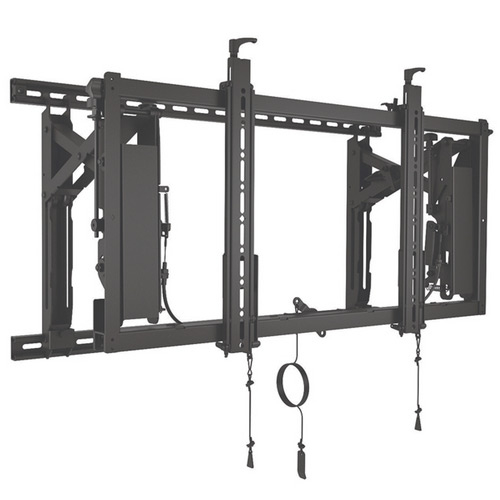

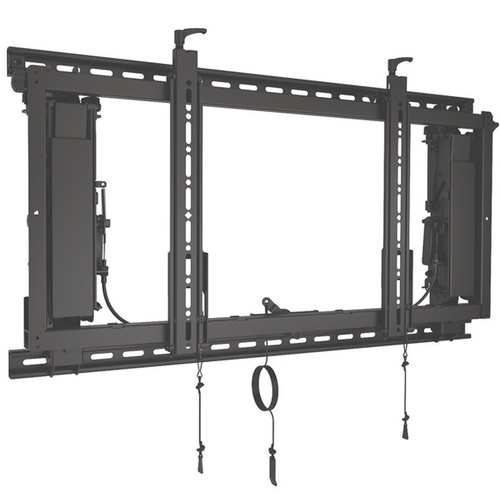

Chief ConnexSysTM Video Wall Landscape Mounting System with Rails, TAA Compliant
Part number LVS1U-G
CONNEXSYS VIDEO WALL MOUNTING SYSTEM, TAA COMPLIANT
- Maximum weight capacity: 68.04 kg
- Minimum screen size: 106.7 cm (42") Maximum screen size: 2.03 m (80") Wall
- Minimum VESA mount: 200 x 100 mm Maximum VESA mount: 700 x 400 mm
- Height adjustment
- Black
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- LVS1U-G
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview

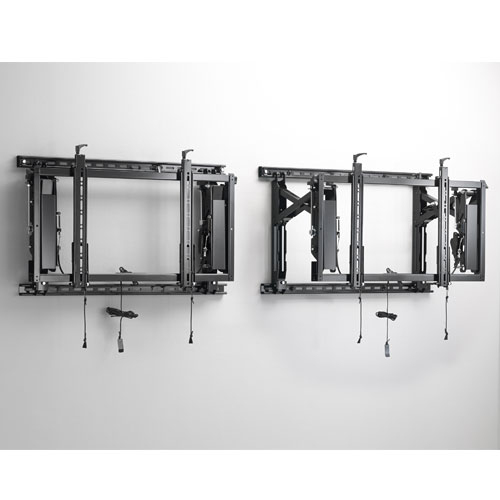

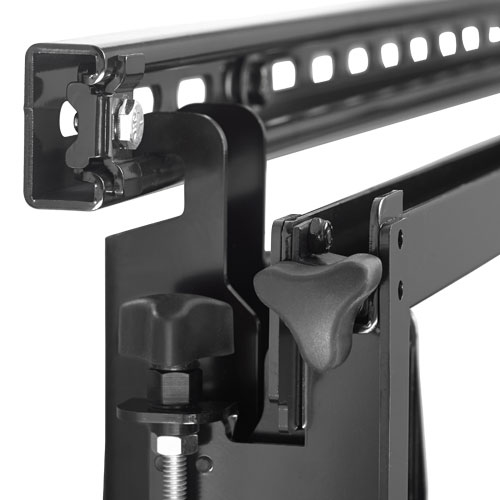

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
The LVS1U ConnexSys Video Wall system landscape mount ships with rails for each mount.
Specifications
| Maximum weight capacity | 68.04 kg |
|---|---|
| Minimum screen size | 106.7 cm (42") |
| Maximum screen size | 2.03 m (80") |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 700 x 400 mm |
| Mounting type | Wall |
| Height adjustment | Yes |
|---|---|
| Tilt angle range | -2.5 - 4° |
| Product colour | Black |
|---|---|
| Certification | TAA,ULCERT |
| Compliance certificates | TAA |
|---|
| Width | 901.7 mm |
|---|---|
| Depth | 101.6 mm |
| Height | 530.9 mm |
| Package weight | 20 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
