CHIEF MANUFACTURING

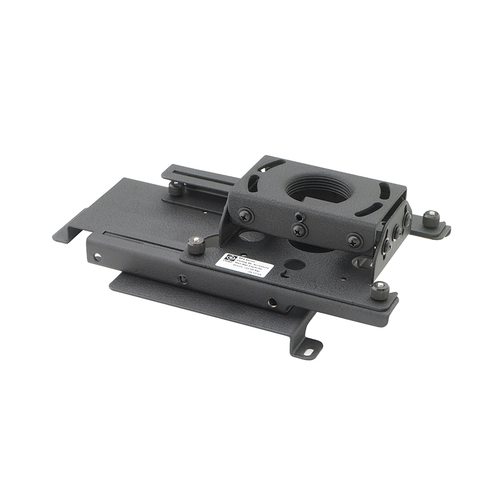

Chief LSB100, Lateral Shift Bracket for LCD/DLP Projector Mounts
Part number LSB100
LATERAL SHIFT BRACKET FOR LCD/DLP PROJECTOR MOUNTS
- Maximum weight capacity: 22.68 kg
- Wall
- Metal Black
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- LSB100
- Condition
- New
- Category
- Accessories › Projector Accessories
Overview
The LSB100 provides 3" (76 mm) right/left lateral adjustment to center the lens.
-Allows lateral shift of projector when used with Chief's RPA or RPM Series mounts.
-Maintains quick-disconnect feature and includes All-Points Security.
-An additional 2.25" (57 mm) right/left lateral adjustment is possible for projectors under 15 lbs (6.8 kg).
Specifications
| Maximum weight capacity | 22.68 kg |
|---|---|
| Mounting type | Wall |
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Certification | ULCERT |
| Width | 236.2 mm |
|---|---|
| Depth | 139.7 mm |
| Height | 20.3 mm |
| Package weight | 530.7 g |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
