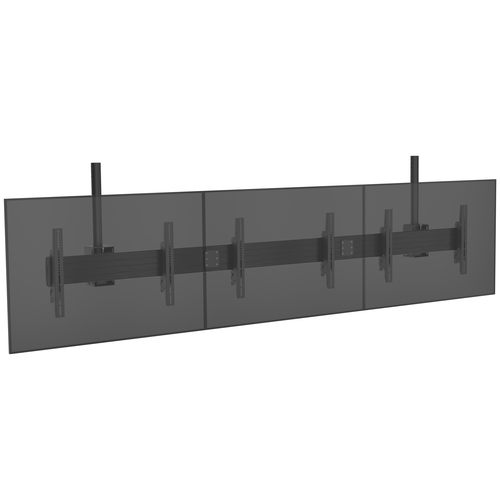

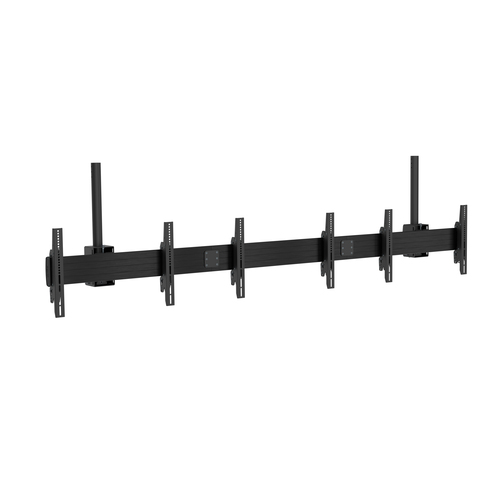

Designed for fast food restaurants, delis, and campus dining halls, Fusion® Modular Menu Board Ceiling Mounts deliver precise screen alignment and flexible positioning for digital menu board displays. The horizontal extrusion with depth adjustment ensures a clean, uniform look—even on irregular mounting surfaces—while allowing easy access behind the displays for quick servicing. Compact modular components ship efficiently and install easily, making setup and stocking hassle-free. Supports most 40”-55” displays.
Specifications
Mounting
Maximum weight capacity
170.1 kg
Minimum screen size
101.6 cm (40")
Number of displays supported
3
Maximum weight capacity (per display)
56.7 kg
Maximum screen size
139.7 cm (55")
Mounting type
Ceiling
Ergonomics
Tilt angle range
-20 - 5°
Tilt adjustment
Yes
Design
Type
Modular
Product colour
Black
Certification
ULCERT
Weight & dimensions
Depth
198.1 mm
Packaging data
Package width
915 mm
Package depth
458 mm
Package height
229 mm
Package weight
21.8 kg
Technical details
Orientation
Landscape
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
