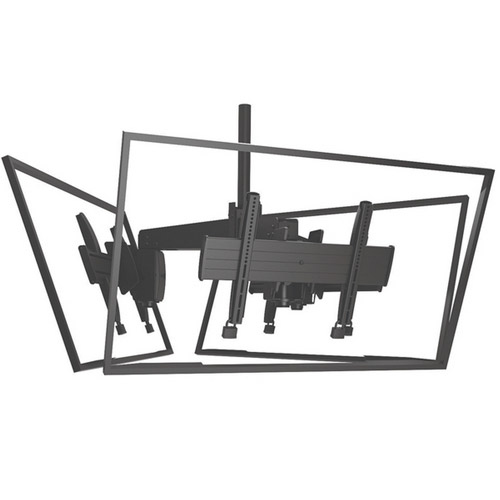

Chief LCM Large Ceiling Multi-Directional Solutions-LCM3U
Part number LCM3U
LCM LARGE CEILING MULTI-DIRECTIONAL SOLUTIONS
- Maximum weight capacity: 56.7 kg
- Minimum screen size: 81.3 cm (32") Maximum screen size: 152.4 cm (60") Ceiling
- Minimum VESA mount: 200 x 200 mm Maximum VESA mount: 600 x 400 mm
- Number of displays supported: 3
- Black
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- LCM3U
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview
Chief's Fusion Ceiling Multi-Directional solutions create 360 viewing capability with a triple-mount system. The LCM3U safely supports multiple displays from a single column drop while maintaining the installer-friendly features of the single screen Fusion mounts.
- Ceiling Plate and Extension Column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
Specifications
| Maximum weight capacity | 56.7 kg |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 3 |
| Maximum screen size | 152.4 cm (60") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Mounting type | Ceiling |
| Tilt angle range | -20 - 5° |
|---|
| Product colour | Black |
|---|---|
| Certification | TAA,ULCERT |
| Compliance certificates | TAA |
|---|
| Width | 1183.6 mm |
|---|---|
| Depth | 1183.6 mm |
| Height | 462.3 mm |
| Package weight | 49 kg |
|---|
| Harmonized System (HS) code | 85299097 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
