CHIEF MANUFACTURING

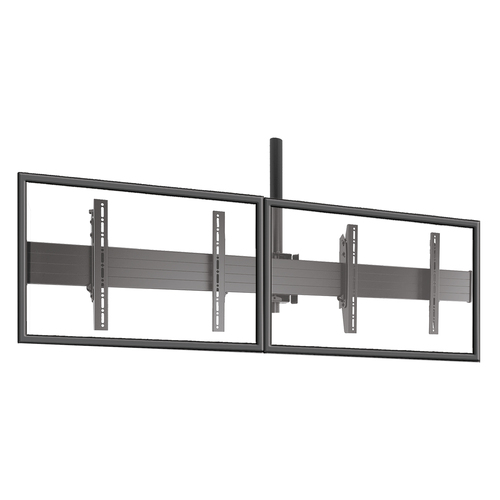

Chief Fusion® Large Ceiling Mounted 2 x 1 Menu Board
Part number LCM2X1U
FUSION LARGE CEILING MOUNTED 2 X 1 MENU BOARD
- Maximum weight capacity: 56.7 kg Black
- Maximum screen size: 139.7 cm (55")
- Mounting type: Ceiling
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 400 x 400 mm
- Housing material: Steel
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- LCM2X1U
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview
- Single drop for fast installation.
- Micro adjustable roll for perfect leveling +/- 3 degrees.
- 360 degree swivel for optimal viewing angles.
- Single horizontal extrusion keeps screens aligned.
- Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees.
- Tool-free screen engagement.
- Secure displays with optional pad-lock security.
- Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65.
Specifications
| Maximum weight capacity | 56.7 kg |
|---|---|
| Minimum screen size | 101.6 cm (40") |
| Number of displays supported | 2 |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Ceiling |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |
| Tilt angle range | -5 - 20° |
|---|
| Product colour | Black |
|---|---|
| Housing material | Steel |
| Certification | ULCERT |
| Package weight | 21.3 kg |
|---|
| Mounting kit | Yes |
|---|
| Harmonized System (HS) code | 85299097 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
