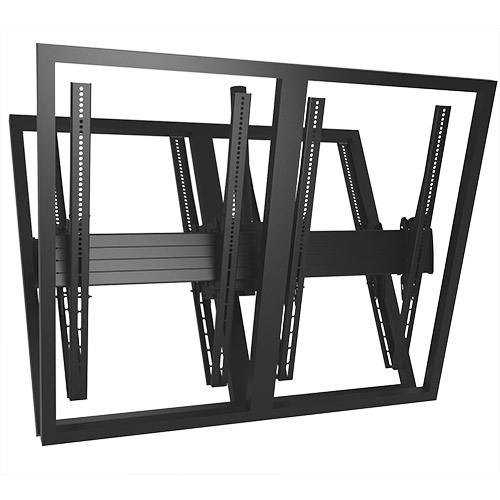

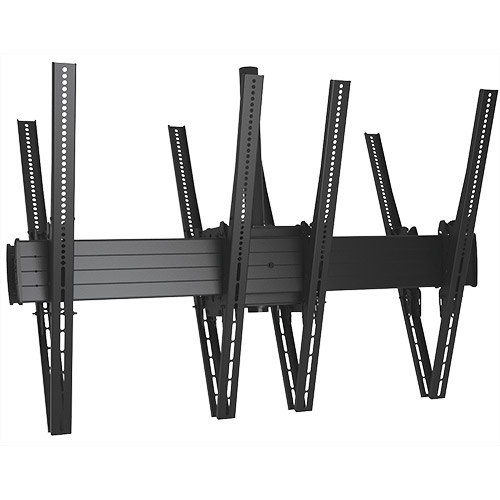

Chief Fusion® Large Portrait Back to Back Ceiling Mounted 2 x 1 Menu Board
Part number LCB2X1UP
CM SIDE X SIDE B2B PORTRAIT
- Maximum weight capacity: 45.36 kg
- Minimum screen size: 101.6 cm (40") Maximum screen size: 101.6 cm (40") Ceiling
- Number of displays supported: 4
- Black
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- LCB2X1UP
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview
- Single drop for fast installation
- Micro adjustable roll for perfect leveling +/- 3 degrees
- 360 degree swivel for optimal viewing angles
- Single horizontal extrusion keeps screens aligned
- Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
- Tool-free screen engagement
- Secure displays with optional pad-lock security
- Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
- CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
See CPA ceiling plates and CPA columns for pin connection compatibility
Specifications
| Maximum weight capacity | 45.36 kg |
|---|---|
| Minimum screen size | 101.6 cm (40") |
| Number of displays supported | 4 |
| Maximum screen size | 101.6 cm (40") |
| Mounting type | Ceiling |
| Tilt angle range | -20 - 5° |
|---|
| Product colour | Black |
|---|---|
| Certification | TAA,ULCERT |
| Compliance certificates | TAA |
|---|
| Package weight | 37.2 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
