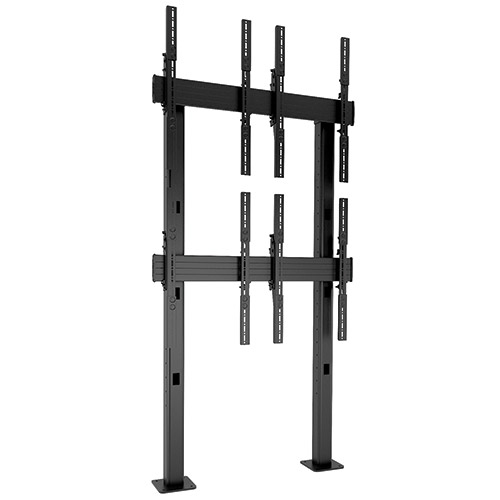

Chief Fusion® 2 x 2 Portrait Micro-Adjustable Large Bolt-Down Freestanding Video Wall
Part number LBM2X2UP
FUSION 2 X 2 PORTRAIT MICRO-ADJUSTABLE LARGE BOLT-DOWN FREESTANDING VIDEO WALL
- Fixed flat panel floor stand Maximum weight capacity: 45.36 kg Black
- Maximum screen size: 127 cm (50")
- Mounting type: Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 600 x 100 mm
- Height adjustment
- Housing material: Steel
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- LBM2X2UP
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview
Chief's FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
- Screen array configuration: 2 screens wide x 2 screens high in portrait;
- 2 x 2 portrait screen arrangement for 42 - 50" screens. Larger displays possible with FCAX; brackets, use MountFinder to confirm compatibility;
- Easily align displays with independent height, plumb and lateral shift adjustment;
- Bolt-down solution allows for a permanent solution;
- Integrated cable management for a clean installation.
Specifications
| Maximum weight capacity | 45.36 kg |
|---|---|
| Minimum screen size | 106.7 cm (42") |
| Number of displays supported | 4 |
| Maximum screen size | 127 cm (50") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 100 mm |
| Panel mounting interface | 100 x 100,200 x 100,300 x 100,400 x 100,500 x 100,600 x 100 |
| Height adjustment | Yes |
|---|---|
| Minimum distance to floor | 44.1 cm |
| Maximum distance to floor | 2.09 m |
| Distance to the wall (min) | 44.1 cm |
| Distance to the wall (max) | 2.09 m |
| Type | Fixed flat panel floor stand |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | TAA,ULCERT |
| Width | 1168.4 mm |
|---|---|
| Depth | 244.1 mm |
| Height | 2504.4 mm |
| Package weight | 87.5 kg |
|---|
| Compliance certificates | TAA |
|---|
| Harmonized System (HS) code | 85299097 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
