Chief KX Low-Profile Quad Monitor Arms, Column Desk Mount, White
Part number KXC420W
KX CLMN DESK MNT QUAD 2L ARMS WHT
- FleXlink provides full range of motion while optimizing depth of dual-, triple- and quad-monitor mounts for shallow-depth desktops
- Best-in-class weight capacity range of 5 to 25 lbs. (2.3 – 11.3 kg) makes specification simple
- No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One!
- Sleek, solidly-constructed forged aluminum arms in subtle silver, black and white finishes

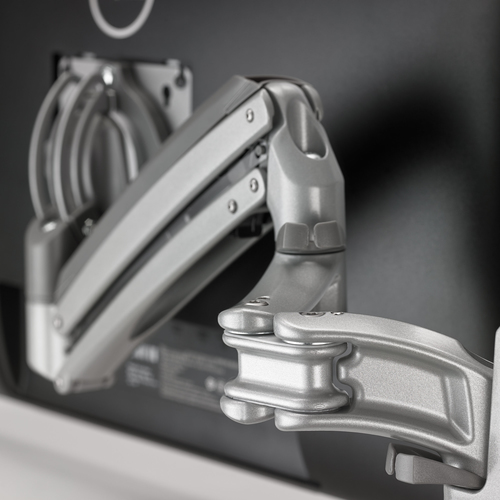

- Enhanced patented Centris™ Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
- Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
- 20" (508 mm) of total height adjustment range
- 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
- Additional 7" (178 mm) of manual height adjustment on the column
- Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the base
- Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
- Tool-free cable management covers for a clean, professional look
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- KXC420W
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview

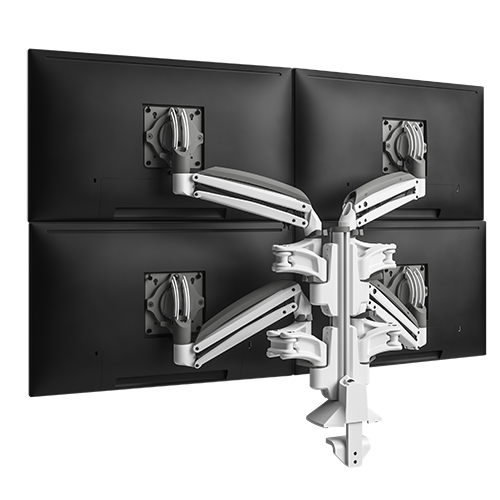

KX Low-Profile Quad Monitor Arms, Column Desk Mount, White
Chief’s premium Kontour™ KX Series Monitor Arms provide the most complete range of motion available, due to our exclusive FleXlink design. KX Series mounts with FleXlink optimize the depth of dual-, triple- and quad-monitor installs for shallow depth desktops while still providing full range of motion for screen sharing with colleagues.
This series includes Chief's patented Centris™ Extreme Tilt technology for effortless fingertip monitor positioning. Kontour™ monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.
Specifications
| Maximum weight capacity | 36.3 kg |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 4 |
| Maximum weight capacity (per display) | 11.3 kg |
| Maximum screen size | 76.2 cm (30") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Extension arm (max) | 54.1 cm |
| Desk thickness (min) | 1.28 cm |
| Desk thickness (max) | 6.38 cm |
| Height adjustment | Yes |
|---|---|
| Height adjustment type | Manual |
| Height adjustment range | 0 - 165.1 mm |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 75° |
| Angle of rotation | 180° |
| Turn angle | 90° |
| Number of arms | 4 |
| Cable management | Yes |
| Product colour | White |
|---|---|
| Orientation | Landscape/Portrait |
| Quantity per pack | 1 pc(s) |
|---|
| Harmonized System (HS) code | 85299097 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
