Overview

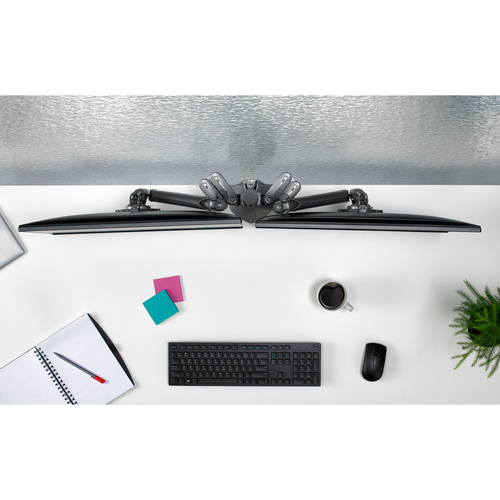

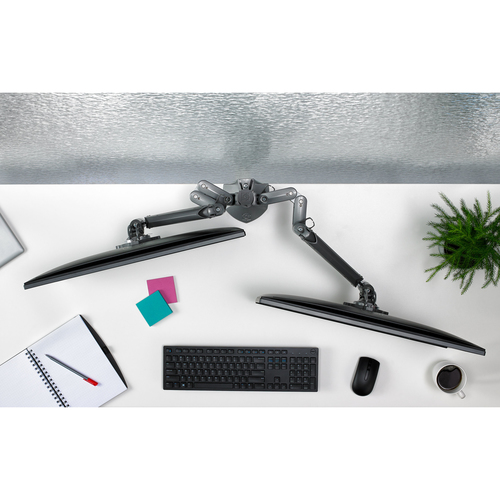

Chief’s premium Kontour™ KX Series Monitor Arms provide the most complete range of motion available, due to our exclusive FleXlink design. KX Series mounts with FleXlink optimize the depth of dual-, triple- and quad-monitor installs for shallow depth desktops while still providing full range of motion for screen sharing with colleagues.

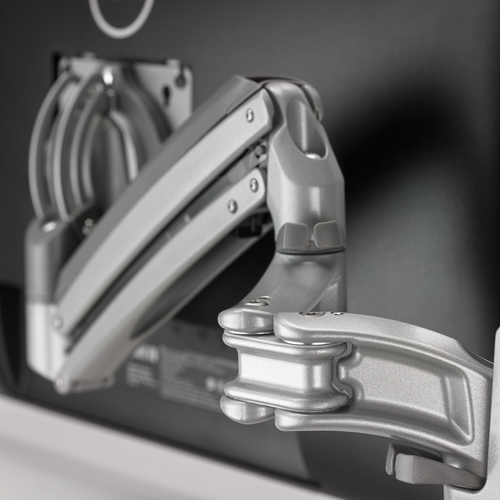

This series includes Chief's patented Centris™ Extreme Tilt technology for effortless fingertip monitor positioning. Kontour™ monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.
Specifications
Mounting
| Maximum weight capacity | 11.34 kg |
|---|
| Minimum screen size | 25.4 cm (10") |
|---|
| Number of displays supported | 3 |
|---|
| Maximum screen size | 81.3 cm (32") |
|---|
| Mounting | Clamp |
|---|
| Mounting type | Desk |
|---|
| Minimum VESA mount | 75 x 75 mm |
|---|
| Maximum VESA mount | 100 x 100 mm |
|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
|---|
| Depth (min) | 6.2 cm |
|---|
| Extension arm (max) | 57.1 cm |
|---|
| Desk thickness (min) | 1.27 cm |
|---|
| Desk thickness (max) | 6.35 cm |
|---|
Ergonomics
| Height adjustment | Yes |
|---|
| Height adjustment range | 177.8 - 330.2 mm |
|---|
| Tilt adjustment | Yes |
|---|
| Tilt angle range | -10 - 75° |
|---|
Design
| Product colour | Black |
|---|
| Orientation | Landscape/Portrait |
|---|
| Easy to install | Yes |
|---|
Weight & dimensions
| Weight | 11.3 kg |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package weight | 11.6 kg |
|---|
Logistics data
| Harmonized System (HS) code | 85299097 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
