Products › Accessories

CHIEF MANUFACTURING

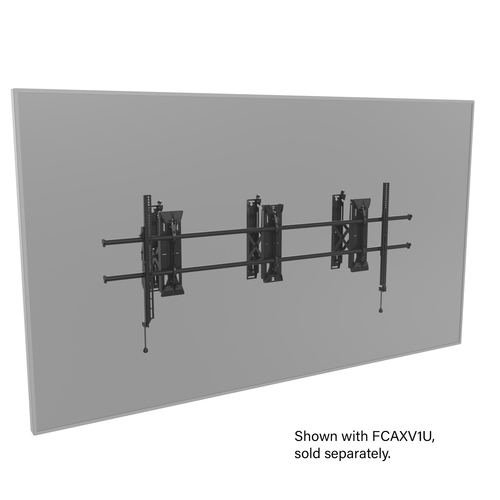

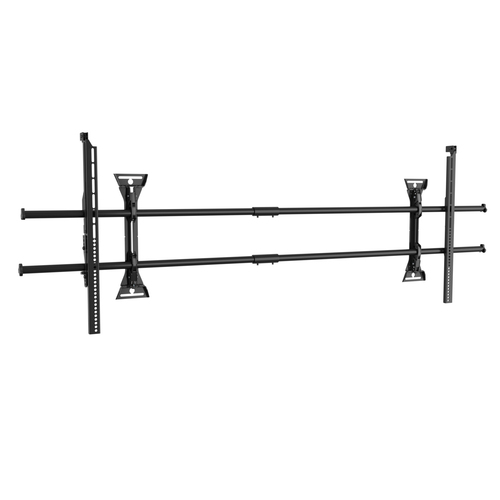

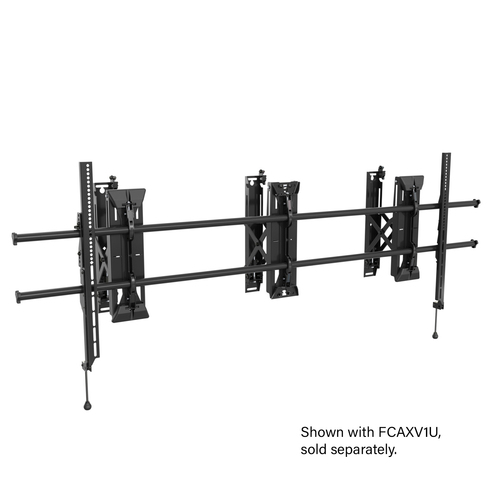

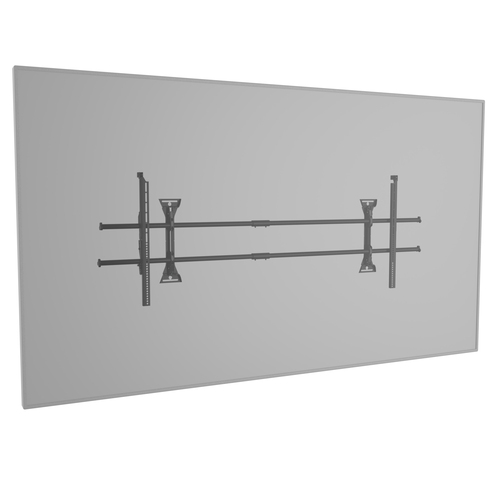

Chief Ultrawide Micro-Adjustable Static Wall Mount, Extra-Large Kit

Part number KITXWXSM1U

KITXWXSM1U

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 22.6" (575mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
Manufacturer
CHIEF MANUFACTURING
Part number
KITXWXSM1U
Condition
New
Category
Accessories › Monitor Accessories
1GPA category
Hardware

Overview

The Ultrawide Micro-Adjustable Static Wall Mount, Extra-Large Kit leverages Fusion® features to support displays with 21:9 aspect ratio and ultrawide mounting patterns (up to 1954 mm x 600 mm) in a secure, easy-to-install solution.

Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

ControlZone Leveling for post-installation fine tuning of height and leveling

Centerless Shift provides up to 22.6" (575mm) of post-installation lateral shift for limitless centering

Set screws keep the mount rigid, stable and secure throughout the life of the installation

ClickConnect offers an audible click when the screen safely engages with the mount

Built-in cable stand provides easy access under the screen

A full line of accessories can be installed with the mount and the entire unit can be adjusted together

Multiple installation options for various stud distances

Exclusive nesting spacers can be stacked to achieve any depth

Quick-Store Cords use magnets to easily store and access pull cords

Improved cable management with new end caps

Integrated Security

Ships with a custom hardware kit that can be hung from mount rails if installing in stages

Easy Open box with less waste to throw away

Specifications

Mounting
Maximum weight capacity113.4 kg
Minimum screen size2.03 m (80")
Number of displays supported1
Maximum weight capacity (per display)113.4 kg
Maximum screen size3.05 m (120")
Minimum VESA mount1300 x 100 mm
Maximum VESA mount1954 x 600 mm
Mounting typeWall
Ergonomics
Cable managementYes
Design
Product colourBlack
Technical details
Country of originChina
Weight & dimensions
Width495.3 mm
Depth57.1 mm
Height666.8 mm
Weight16.5 kg
Packaging data
Package weight16.5 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
