CHIEF MANUFACTURING

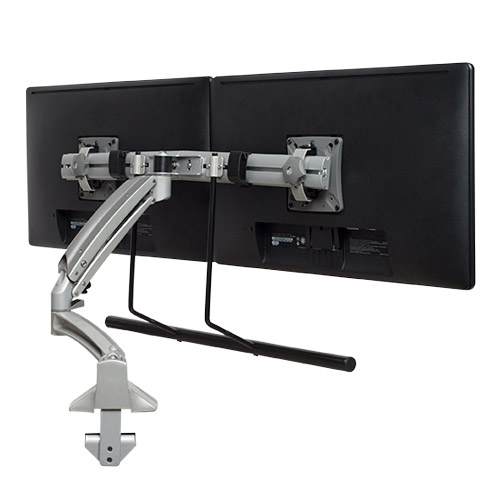

Chief KontourTM K1D Dynamic Desk Mount, Dual Monitor Array, Reduced Height - K1D22HSXRH

Part number K1D22HSXRH

K1D22H REDUCED HEIGHT SLV

  • Maximum weight capacity: 4.082 kg
  • Minimum screen size: 25.4 cm (10") Maximum screen size: 61 cm (24")
  • Number of displays supported: 2
  • Mounting type: Desk
  • Maximum VESA mount: 100 x 100 mm
  • Aluminium Silver
Manufacturer
CHIEF MANUFACTURING
Part number
K1D22HSXRH
Condition
New
Category
Accessories › Monitor Accessories
1GPA category
Hardware

Overview

The enhanced Kontour K1D Dynamic Height-Adjustable Dual Monitor Array is the perfect solution for the office, healthcare facilities, or home. The Dual Monitor Array provides optimal minimum depth for dual monitor applications installed in typical desking environments with rear panels at each workstation, maximizing usable work surface. This Reduced Height model is optimal for bi-focal wearers or touch-panel users that desire their displays positioned as close to the work surface as possible.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology for the ultimate in effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work space.

- New dual-monitor Array Bar with low-profile Tilt and Rotation adjustment

- Reduced Height model provides optimal minimum height for bi-focal wearers and touch-panel users that require the display be as close to the work surface as possible

- Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes

- 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology

- Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base

- Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit

- Tool-free cable management covers for a clean, professional look

With high levels of recycled content & a highly-recyclable design, Chief Kontour™ monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits!

- See our LEED Flyer for more details

Specifications

Mounting
Maximum weight capacity4.082 kg
Minimum screen size25.4 cm (10")
Number of displays supported2
Maximum screen size61 cm (24")
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Ergonomics
Tilt angle range-10 - 10°
Design
Housing materialAluminium
Product colourSilver
Weight & dimensions
Width563 mm
Depth109 mm
Height375 mm
Packaging data
Package weight9.3 kg
Other features
Compliance certificatesTAA
CertificationTAA
Logistics data
Harmonized System (HS) code85299097

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
