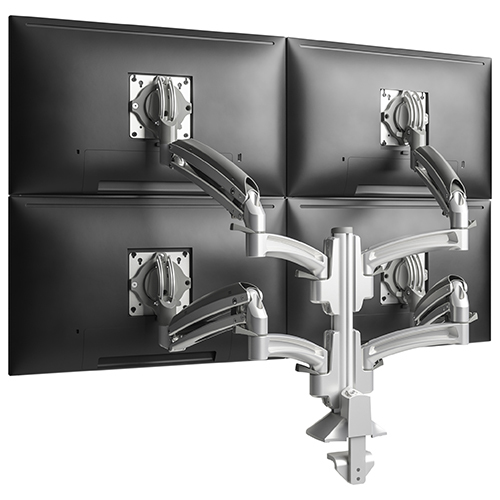

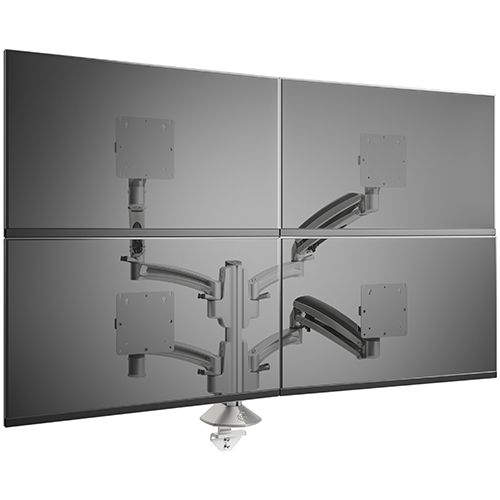

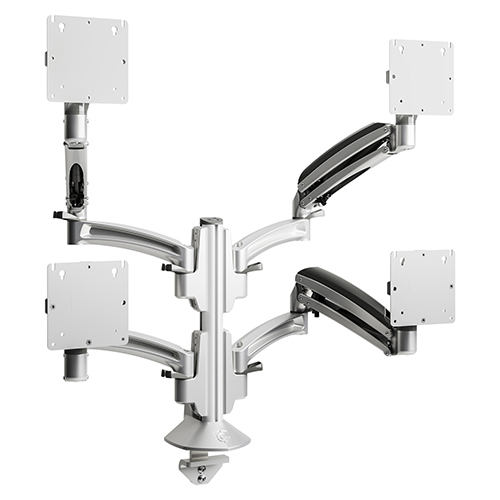

Chief KontourTM K1C Quad 2x2 Monitor Dynamic Column Mount-K1C420S

Part number K1C420S

K1 CLMN MNT 4 DISP DUAL 2L ARMS SLV

Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple
Sleek, solidly-constructed forged aluminum arms in subtle silver & black finishes
Enhancedpatented Centris™Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without Impact™ing the existing installation, future-proofing your investment
20" (508 mm) of total height adjustment range
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Additional 7" (178 mm) of manual height adjustment on the column
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour™monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits!
Most Kontour™ K1 products are TAA-compliant - see respective product pages for details

Manufacturer: CHIEF MANUFACTURING
Part number: K1C420S
Condition: New
Category: Accessories › Monitor Accessories
1GPA category: Hardware

Overview

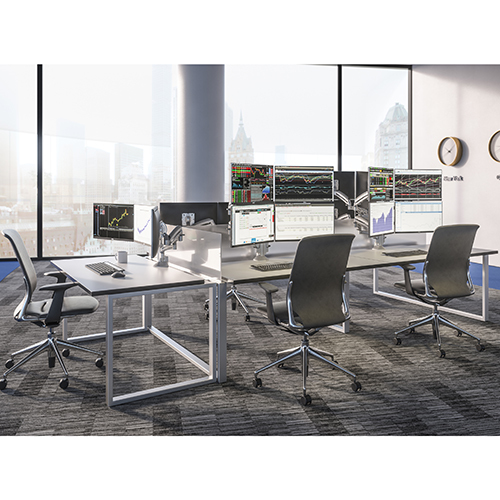

The enhanced Kontour™K1C Dynamic Height-Adjustable Column Mounts are the perfect solutions for the office, healthcare facilities or home. K1C mounts provide the maximum amount of both dynamic and manual height adjustment for the ultimate ergonomic solution. And best-in-class weight capacity range makes specification simple!

Key enhancements have been made to Chief's patented Centris™Extreme Tilt technology for effortless fingertip monitor positioning. Kontour™ monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.

Specifications

Mounting
Maximum weight capacity	9.07 kg
Minimum screen size	25.4 cm (10")
Number of displays supported	4
Maximum screen size	91.4 cm (36")
Mounting	Clamp
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75,100 x 100 mm
Desk thickness (min)	1.27 cm
Desk thickness (max)	6.35 cm

Ergonomics
Height adjustment	Yes
Tilt adjustment	Yes
Tilt angle range	-10 - 75°
Swivelling	Yes
Number of arms	4
Cable management	Yes
Built-in gas spring	Yes

Design
Housing material	Aluminium
Product colour	Silver
Orientation	Landscape/Portrait
Easy to install	Yes

Packaging data
Quantity per pack	1 pc(s)
Package weight	15 kg

Packaging content
Manual	Yes

Other features
Compliance certificates	Trade Agreements Act (TAA)

Technical details
Height adjustment	33 cm
