Chief Medium Flat Panel Single Arm Wall Display Mount - 12 Inch Extension-JWSUB
Part number JWSUB
SINGLE ARM WALL MNT, UNIV
- Maximum weight capacity: 34.02 kg
- Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 400 x 400 mm
- Black
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- JWSUB
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview

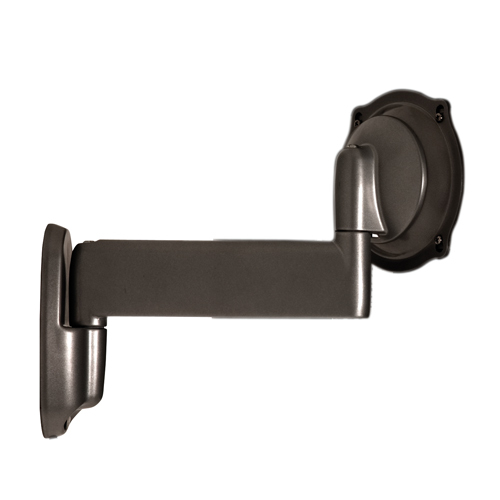

Medium Flat Panel Single Arm Wall Mount - 12" Extension
This single arm wall mount provides a broad range of motion for viewing medium flat panel TVs and monitors from multiple angles.
Ergonomic solution for the home or office providing excellent adjustability
Folds in close to the wall for a low-profile appearance
Features
- Centris Fingertip Tilt provides smooth tilt adjustment in all directions
- Gravity-centered tilt self-adjusts to securely hold different display weights
- Teardrop hole pattern makes mounting the screen quick and easy
- Portrait and landscape screen installation.
- Smooth extension to achieve ideal viewing angle
- Independently adjustable tension at pivot points for customized control
- Quick, easy cable management
- Sleek, attractive design hides all hardware
- Ships assembled
- Universal models available for VESA® 100 x 100 mm up to 400 x 400mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Specifications
| Maximum weight capacity | 34.02 kg |
|---|---|
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Mounting type | Wall |
| Tilt angle range | -15 - 15° |
|---|---|
| Distance to the wall (max) | 30.2 cm |
| Distance to the wall (min) | 8.59 cm |
| Product colour | Black |
|---|---|
| Certification | UL |
| Width | 332.7 mm |
|---|---|
| Depth | 86.4 mm |
| Height | 292.1 mm |
| Package weight | 6.21 kg |
|---|
| Screen size compatibility | 660.4 - 1143 mm (26 - 45") |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
