Chief Camera Shelf for TempoTM Flat Panel In-Wall Mount System

Part number FPIWMA100

CAMERA SHELF FOR TEMPO WALL MOUNT

• Camera shelf is 6” (152 mm) and has a 4” (102 mm) depth adjustment slot to facilitate placement of the camera using ¼”-20 screw.
• Fits most cameras with ¼”-20 tripod mounting hole.

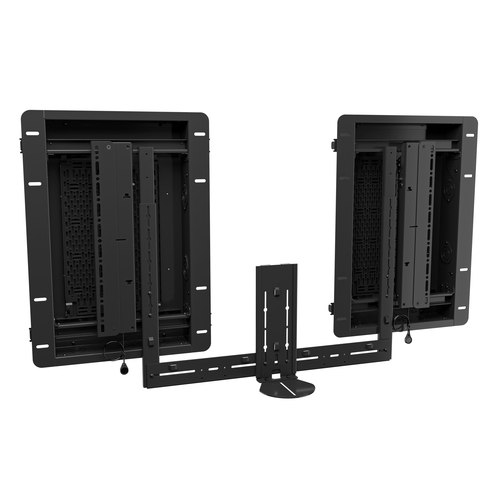

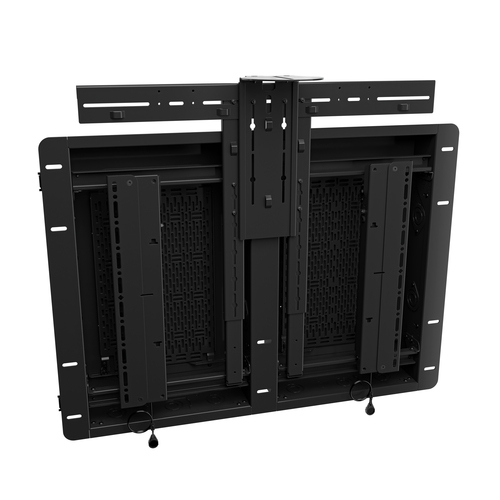

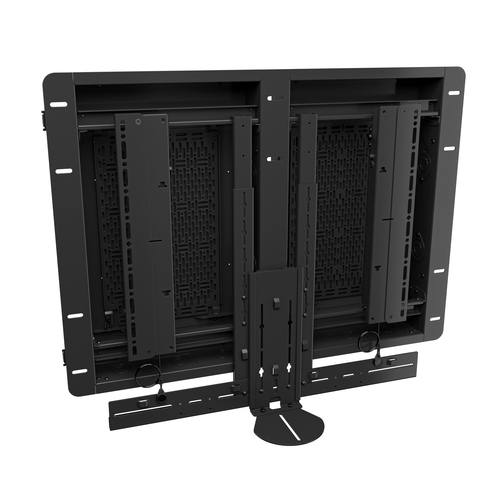

• Quick and easy installation. The camera shelf glides and locks into place on the top or bottom rail of the Tempo Flat Panel In-Wall Mount System.
• Horizontal lateral shift allows you to position the camera shelf as needed to center with the display.
• Height adjustment allows 15.56” (395 mm) of travel to easily position the camera shelf at the right height above or below the display.
• Window opening and slots along both sides of the vertical bracket facilitate cable management.
• Weight capacity of 15 lbs (6.8 kg).
• Includes mounting bracket for Vaddio IntelliSHOT and ConferenceSHOT ePTZ cameras.
• IMPORTANT! Installation pre-requisite: Tempo Flat Panel In-Wall Mount System FPIWMS mounting rails must be installed at a minimum 1” depth prior to installation of either FPIWMA100 and FPIWMA101 accessories.
• TAA Compliant

Manufacturer

CHIEF MANUFACTURING

Part number

FPIWMA100

Condition

New

Category

Accessories › Camera Accessories

1GPA category

Hardware
