Chief 2' x 2' Above Suspended Ceiling Storage Box

Overview

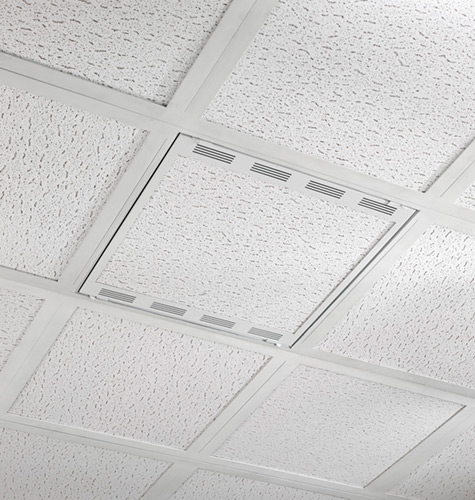

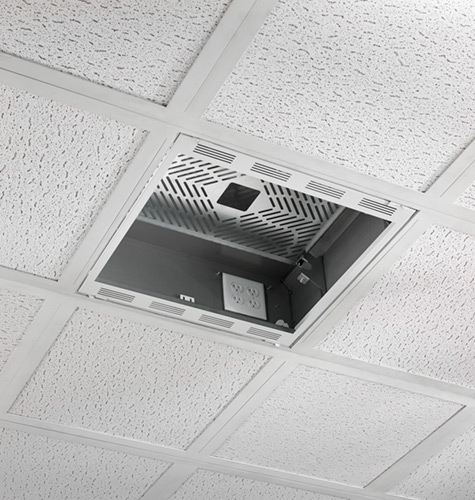

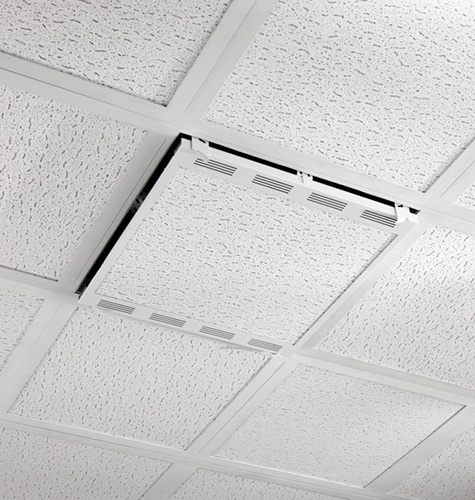

The CMS492 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.

Features

- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time

- Inside the plenum box or facing the room

Up to 2 single gang or 1 dual gang outlet

4 nested knockouts for 1-1/4", 1", & 1/2" diameter conduit

- Built in ventilation

- AV tray supports a variety of AV components

Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2

1 RU rack rail brackets sold separately, see CMS1RU

- Overall weight capacity 100 lbs (45 kg)

50 lbs (22 kg) for projector ceiling plate

25 lbs (11 kg) per shelf location

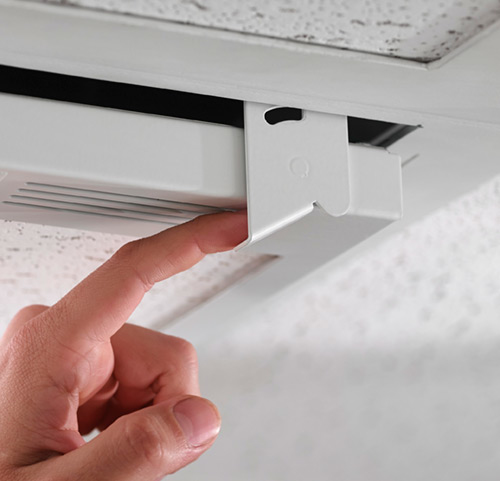

- Ships with speed connect installation hardware

- Lightweight construction, one man installation

- Plenum rated, UL approved in accordance to 2043
