Chief CMS072, 72 Inch Fixed Extension Column, Pole
Part number CMS072
CHIEF CMS072, 72 INCH FIXED EXTENSION COLUMN, POLE - ALUMINUM EXTENSION COLUMN F
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- CMS072
- Condition
- New
- Category
- Accessories › Monitor Accessories
- 1GPA category
- Hardware
Overview

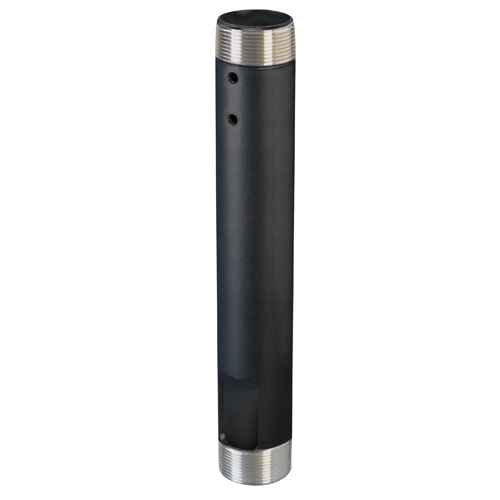

CMS Speed-Connect Adjustable Extension Columns lower projector to desired height. Provides up to 2' range of height adjustment in 1" increments, depending on model (6" to 12' lengths available). Includes set screw for add stability. Consists of 1 1/2" NPT column, threaded on both ends. Use in combination with any Chief 1 1/2" NPT ceiling plate or other accessory.
Designed to adjust length without requiring disassembly.
Aluminum construction for easier installation – also saves on shipping costs.
* NOTE: Bracket adds 6 lbs/2.7 kg and .94"/24 mm depth to installation. Be sure additional weight does not extend wall or ceiling mount weight capacity.
Specifications
| Product colour | Black |
|---|---|
| Maximum weight capacity | 226.8 kg |
| Form factor | 6-8' (182.88 - 243.84 cm) |
| Certification | TAA,ULCERT |
| Compliance certificates | TAA |
| Width | 48.3 mm |
|---|---|
| Depth | 48.3 mm |
| Height | 1828.8 mm |
| Package weight | 3.63 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
