CHIEF MANUFACTURING

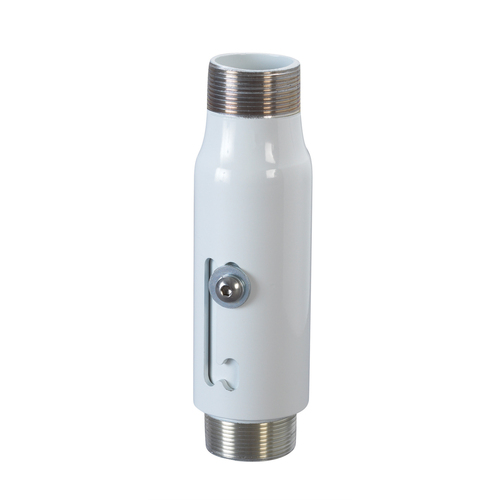

Chief CMS006009W, 6-9 Inch Adjustable Extension Column, Pole

Part number CMS006009W

6-9INCH (152-228 MM) SPEED-CONNECT ADJUSTABLE EXTENSION COLUMN

Manufacturer
CHIEF MANUFACTURING
Part number
CMS006009W
Condition
New
Category
Accessories › Monitor Accessories
1GPA category
Hardware

Overview

6-9" Adjustable Extension Column

Save installation time and maximize security with these adjustable columns.

Features

- Provides height adjustment in 1" increments

- Notched design for adjustment without disassembly

- Includes set screw for add stability

- Consists of 1.5" NPT column, threaded on both ends

- Use in combination with any Chief 1.5" NPT ceiling plate or other accessory

Certifications: TUV Approved, UL Approved, UL Listed

Overall Dimensions (H x W x D): 9.0" x 2.3" x 2.3" (229 x 59 x 59 mm)

Weight Capacity: 500 lbs (226.8 kg)

Specifications

Features
Product typeThreaded column
Brand compatibilityChief
MaterialMetal
Product colourWhite
Maximum weight capacity226.8 kg
CertificationTAA,ULCERT
Weight & dimensions
Width58.4 mm
Depth58.4 mm
Height228.6 mm
Packaging data
Package weight707.6 g
Technical details
Compliance certificatesTAA
Logistics data
Harmonized System (HS) code85299097

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
