CHIEF MANUFACTURING
Chief Large Venue Vibration Isolating Coupler, Black
Part number CMA348
VIBRATION ISOLATOR COUPLER
- Compatible for systems* between 35 – 100lbs (15.9 – 45.4 kg)
- Systems include all weight below the vibration isolator, including column, projector mount and projector
- Average weights of common mounts include: RPAU (4 lbs or 1.8 kg), RPMAU (5 lbs or 2.3 kg), and VCMU (33 lbs or 15 kg)
- Average weight of CMS columns under 12” in length are 1 lb (0.5 kg) or less
- Compatible with Chief CMS columns (1.5” NPT)
- Manufacturer
- CHIEF MANUFACTURING
- Part number
- CMA348
- Condition
- New
- Category
- Accessories › Projector Accessories
- 1GPA category
- Hardware
Overview

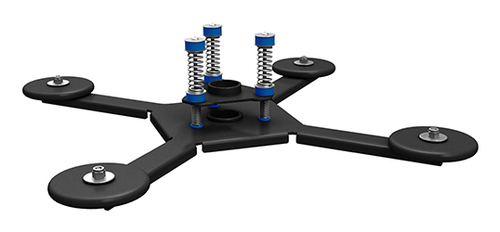

The CMA Large Venue Vibration Isolating Coupler reduces image movement caused by common building vibrations like HVAC, foot traffic, road traffic and doors shutting. The patented design works as a projector mount vibration isolator by connecting two Chief CMS columns (1.5” NPT) and limiting vibrations that are transmitted to the lower column. The higher weight capacity accommodates systems weighing 35-100 lbs (15.9 – 45.4 kg).
Specifications
| Product type | Threaded pipe coupler |
|---|---|
| Brand compatibility | Any brand |
| Material | Steel |
| Product colour | Black |
| Maximum weight capacity | 45.36 kg |
| Certification | TAA |
| Width | 584.2 mm |
|---|---|
| Depth | 584.2 mm |
| Height | 152.4 mm |
| Weight | 2 kg |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package weight | 12.2 kg |
| Compliance certificates | TAA |
|---|
