Chief Camera Shelf for TempoTM Flat Panel Wall Mount System

Overview

Complete your AV system installations with this Installer Inspired camera shelf for use with Tempo Flat Panel Wall Mount Systems.

Key Features:

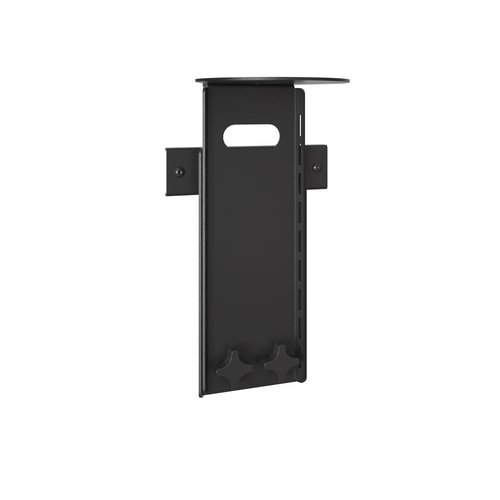

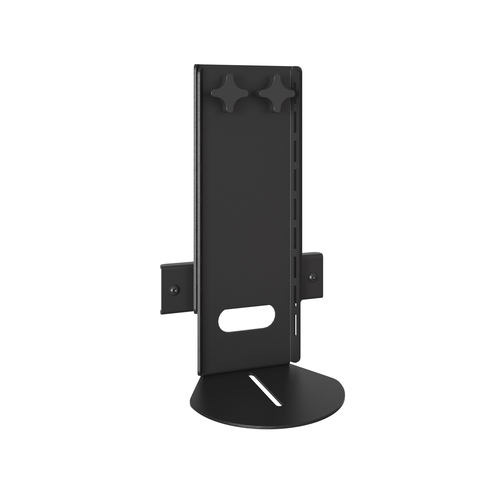

Camera shelf is 6” (152 mm) and has a 3.28” (83 mm) depth adjustment slot to facilitate placement of the camera using ¼”-20 screw.

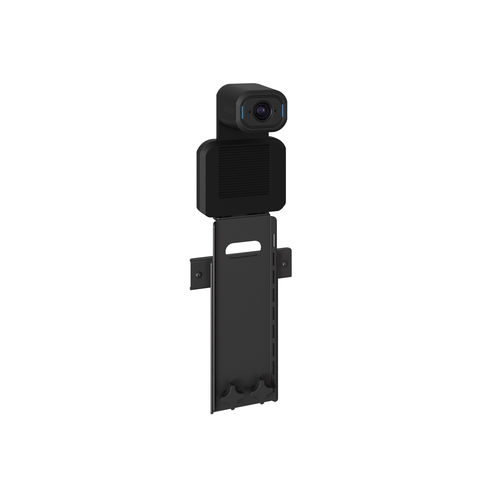

Fits most cameras with ¼”-20 tripod mounting hole.

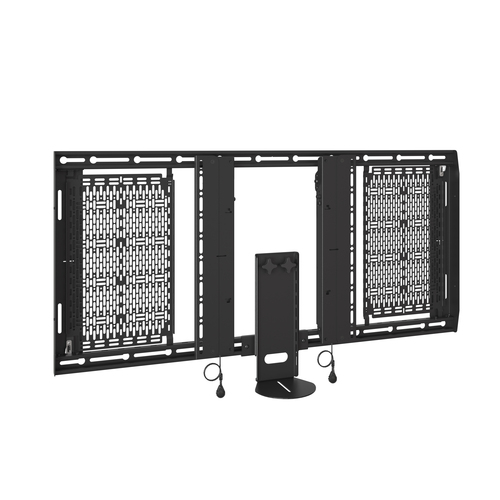

Quick and easy installation. The camera shelf glides and locks into place on the top or bottom rail of the Tempo Flat Panel Wall Mount System using strut channel nuts with captive screws.

Lateral shift allows you to position the camera shelf wherever you need it along the wall plate mounting rail.

Toolless height-adjust knobs allow 6.27” (159 mm) of travel to easily position the camera shelf at the right height above or below the display.

Camera shelf can be installed between 12.7" (323 mm) to 28.26" (718 mm) of Tempo FP Wall Mount System center line.*

Window opening and slots along both sides of the vertical bracket facilitate cable management.

Weight capacity of 15 lbs (6.8 kg).

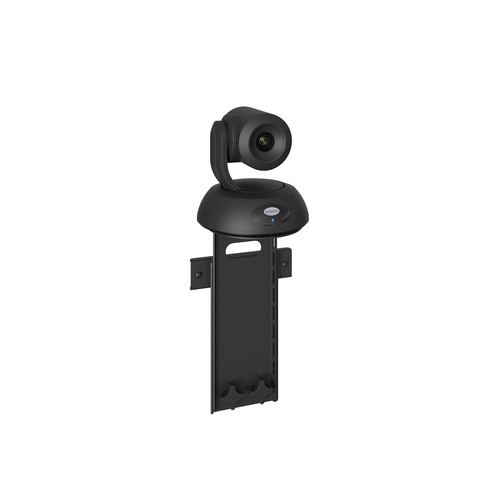

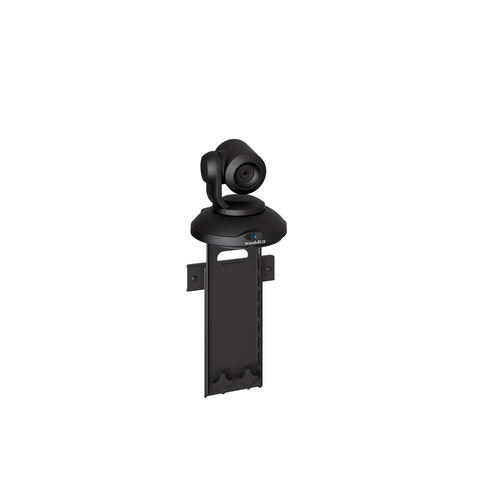

Includes mounting bracket for Vaddio IntelliSHOT and ConferenceSHOT ePTZ cameras.

Ships practically fully assembled! Just screw the shelf to the vertical bracket.

* For display size clearance details please refer to the Technical Drawing. Dimensions and specifications dependent on application use case.

** Cameras sold separately
