Overview
The RF200-800mm F6.3-9 IS USM is a versatile lens, combining powerful telephoto capability and Image Stabilization in a portable design that many users may be able to hand-hold. The lens weighs about 4.5 pounds, and its Image Stabilization delivers up to 5.5 stops of shake-correction**, for steadiness whether you’re handholding, or working with a monopod. The RF200-800mm F6.3-9 IS USM can help elevate your content whether it’s wildlife, birds and nature, or outdoor sports such as surfing, golf, baseball, motorsports, and more.
Specifications
Lens system
| Component for | MILC |
|---|
| Lens type | Telephoto zoom lens |
|---|
| Lens structure (elements/groups) | 17/11 |
|---|
| Lens viewing angle, horizontal | 10° - 2° 35' |
|---|
| Focus adjustment | Auto/Manual |
|---|
| Lens viewing angle, vertical | 7° - 1° 40' |
|---|
| Lens viewing angle, diagonal | 12° - 3° 05' |
|---|
| Focal length range | 280 - 1120 mm |
|---|
| Minimum aperture number | 32 |
|---|
| Number of diaphragm blades | 9 |
|---|
| Closest focusing distance | 0.8 m |
|---|
| Maximum aperture number | 13 |
|---|
| Macro ratio | 1:4 |
|---|
| Zoom capability | Yes |
|---|
| Image sensor format | Full frame |
|---|
| Lens mount interface | Canon RF |
|---|
| Teleconverter/Extender compatible | Yes |
|---|
| Control ring | Yes |
|---|
| Image stabilizer | Yes |
|---|
| Image stabilizer type | Optical Image Stabilization (OIS) |
|---|
| Image stabilizer number of stops | 5.5 |
|---|
| Image stabilizer number of stops (OIS) | 5.5 |
|---|
| Image stabilizer number of stops (IBIS x OIS) | 5.5 |
|---|
Performance
| Auto focus | Yes |
|---|
| Manual focus | Yes |
|---|
| AF actuator | USM |
|---|
| Lens colour | White |
|---|
| Camera brands compatibility | Canon |
|---|
| Circular aperture | Yes |
|---|
| Number of Ultra-low Dispersion (UD) elements | 3 |
|---|

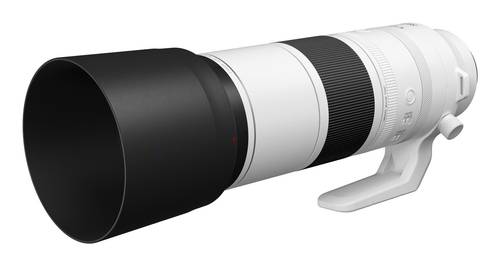

| Lens hood | Yes |
|---|
| Lens hood model | ET-101 |
|---|
Design
| Product colour | Black, White |
|---|
| Mounting type | Bayonet |
|---|
| Dustproof | Yes |
|---|
| Weatherproof | Yes |
|---|
Logistics data
| Country of origin | Japan |
|---|
| Quantity per pack | 1 pc(s) |
|---|
| Layers per pallet | 2 pc(s) |
|---|
| Master (outer) cases per pallet layer | 8 pc(s) |
|---|
Weight & dimensions
| Length | 314.1 mm |
|---|
| Weight | 2.05 kg |
|---|
| Diameter | 10.2 cm |
|---|
| Filter size | 95 mm |
|---|
Packaging data
| Package width | 400 mm |
|---|
| Package depth | 450 mm |
|---|
| Package height | 250 mm |
|---|
| Package weight | 2.2 kg |
|---|
| Package type | Box |
|---|
Packaging content
| Lens cap included | Yes |
|---|
| Lens cap model | E-95 |
|---|
| Rear lens cap included | Yes |
|---|
| Rear lens cap model | RF |
|---|
| User guide | Yes |
|---|
