Buffalo Americas

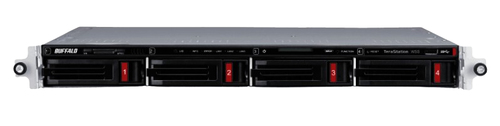

Buffalo TeraStation WS5420RN NAS Rack (1U) Intel Atom® C3338 8 GB DDR4 16 TB HDD Windows Server IoT 2025 Black
Part number WS5420RN16W5
TERASTATION 5420RN 16TB 4-BAY WS IOT 2025 WORKGROUP 4X4TB NAS HD
- Small & Medium Business NAS Rack (1U) Black
- Windows Server IoT 2025
- Total installed storage capacity: 16 TB Number of storage drives supported: 4 HDD
- Intel Atom® C3338 2.2 GHz
- 8 DDR4 ECC
- Ethernet LAN 10000 iSCSI support
- Cooling type: Active
- Manufacturer
- Buffalo Americas
- Part number
- WS5420RN16W5
- Condition
- New
- Category
- Storage Devices › Network Storage
- 1GPA category
- Hardware
Specifications
| Storage drive capacity | 4 TB |
|---|---|
| Storage drive interface | Serial ATA III |
| RAID support | Yes |
| RAID levels | 0, 1, JBOD, 5 |
| Storage drives installed | Yes |
| Total installed storage capacity | 16 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Atom® |
| Processor model | C3338 |
| Processor frequency | 2.2 GHz |
| Processor cores | 2 |
| Internal memory | 8 GB |
|---|---|
| Internal memory type | DDR4 |
| ECC | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100,1000,10,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T, 1000BASE-T, 2.5GBASE-T, 100BASE-TX, 10BASE-T |
| iSCSI support | Yes |
| Supported network protocols | TCP/IP |
| USB port | Yes |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 3 |
| Chassis type | Rack (1U) |
|---|---|
| Cooling type | Active |
| Product colour | Black |
| Type | NAS |
|---|---|
| Device class | Small & Medium Business |
| Backup function | Yes |
| Security algorithms | SNMP |
| Operating system installed | Windows Server IoT 2025 |
|---|---|
| Windows operating systems supported | Windows 11, Windows 10, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.12 Sierra |
| Server operating systems supported | Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012 |
| Power consumption (max) | 100 W |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Width | 429.2 mm |
|---|---|
| Depth | 429.2 mm |
| Height | 43.1 mm |
| Weight | 8.98 kg |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Digital Living Network Alliance (DLNA) certified | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
