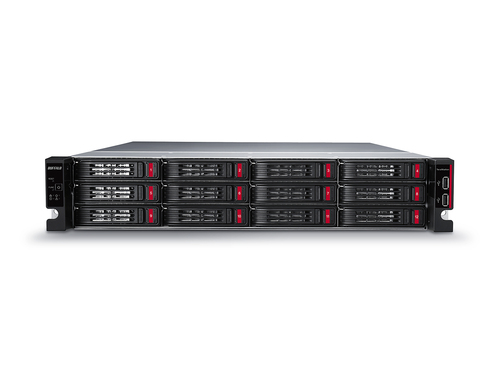

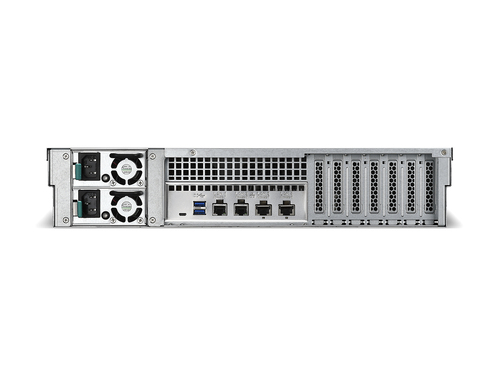

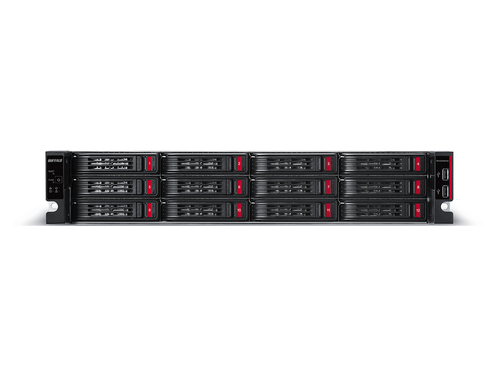

Buffalo TeraStation TS51220RH6404 NAS/storage server Rack (2U) Annapurna Labs AL524 16 GB DDR4 64 TB HDD Black
Part number TS51220RH6404
TERASTATION 51220RH NAS 64TB 2U RM 4X16TB ENT HD 2X10GBE RAID
- Large Enterprise Business NAS Rack (2U) Black
- Total installed storage capacity: 64 TB Number of storage drives supported: 12
- Annapurna Labs AL524 2.04 GHz
- 16 DDR4
- Ethernet LAN
- Manufacturer
- Buffalo Americas
- Part number
- TS51220RH6404
- Condition
- New
- Category
- Storage Devices › Network Storage
- 1GPA category
- Hardware
Specifications
| Storage drive capacity | 240 TB |
|---|---|
| Storage drive interface | Serial ATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Storage drives installed | Yes |
| Total installed storage capacity | 64 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 12 |
| Installed storage drive type | HDD |
| Processor manufacturer | Annapurna Labs |
|---|---|
| Processor family | Annapurna Labs |
| Processor model | AL524 |
| Processor frequency | 2.04 GHz |
| Processor cores | 4 |
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| USB port | Yes |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Chassis type | Rack (2U) |
|---|---|
| Product colour | Black |
| Type | NAS |
|---|---|
| Device class | Large Enterprise Business |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8.1 |
|---|---|
| Mac operating systems supported | Mac OS X 10.13 High Sierra |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Width | 480 mm |
|---|---|
| Depth | 736.6 mm |
| Height | 86.4 mm |
| Weight | 25.1 kg |
| Package width | 581.7 mm |
| Package depth | 977.9 mm |
| Package height | 259.1 mm |
| Package weight | 30.2 kg |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
