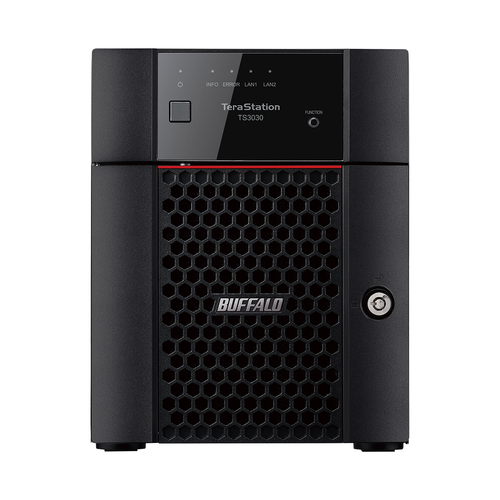

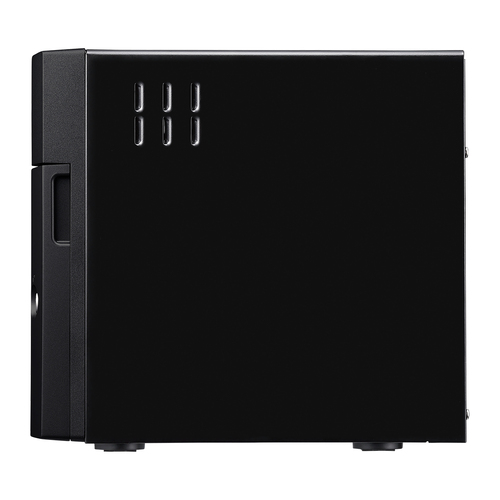

Buffalo TeraStation TS3430DN0804 NAS Desktop Alpine AL524 2 GB DDR4 4 TB HDD Black
Part number TS3430DN0402
TERASTATION 3430DN 4TB 2X2TB HD NAS 2 OPEN BAYS 2.5GBE RAID ISCSI
- Home & Home Office NAS Desktop Black
- Total installed storage capacity: 4 TB Number of storage drives supported: 4 HDD & SSD Serial ATA III
- Alpine AL524 2 GHz
- 2 DDR4
- Ethernet LAN
- Manufacturer
- Buffalo Americas
- Part number
- TS3430DN0402
- Condition
- New
- Category
- Storage Devices › Network Storage
- 1GPA category
- Hardware
Overview
Secure, User Friendly Storage Solutions for Small Offices
The TeraStation 3030 solves common small office challenges—such as slow file access, unreliable backups, and costly storage—with an all-in-one NAS. Equipped with NAS-grade hard drives, pre-configured RAID, and a native 2.5GbE port, the TS3030 delivers faster file access, greater reliability, and easy cloud integration—helping teams stay productive and protected without overburdening IT.
Secure Business Network Storage
Secure business-grade NAS with hard drives included, optimized to efficiently store, share, and back up critical data.
Cloud Integration
Sync with Dropbox, Amazon S3, Microsoft Azure, and OneDrive for hybrid cloud setups, boosting data security, backup versatility, and cost efficiency.
Deploy Out of the Box
Arrives pre-configured with RAID for quick deployment.
Quality Engineering, Made in Japan
Precision-crafted with high-quality components and fully TAA-compliant.
Worry-Free Support & Warranty
Includes a 3-year Next Business Day warranty (including hard drives), plus 24/7 US-based support and data recovery services.
Specifications
| Storage drive capacity | 2 TB |
|---|---|
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |

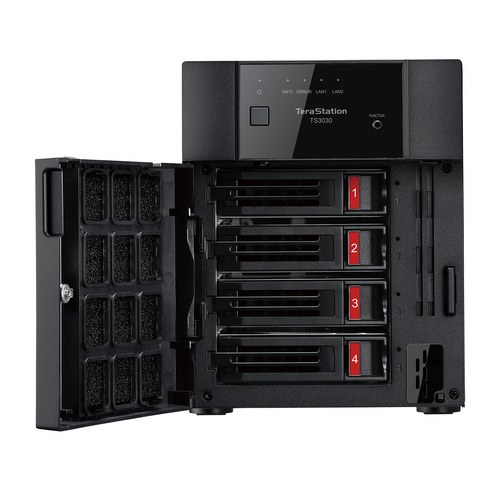

| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS |
| Storage drives installed | Yes |
| Total installed storage capacity | 4 TB |
| Number of storage drives installed | 2 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Annapurna Labs |
|---|---|
| Processor family | Alpine |
| Processor model | AL524 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Internal memory | 2 GB |
|---|---|
| Internal memory type | DDR4 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 1000,2500 Mbit/s |

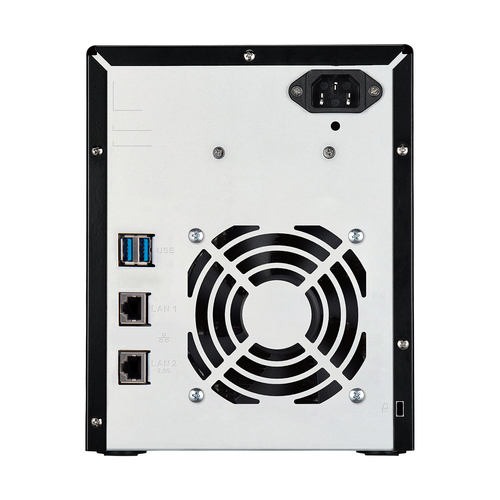

| USB port | Yes |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Chassis type | Desktop |
|---|---|
| Product colour | Black |
| Type | NAS |
|---|---|
| Device class | Home & Home Office |
| Backup function | Yes |
| Web-based management | Yes |
| On/off switch | Yes |
| Password authentication | Yes |
| Power consumption (max) | 85 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Width | 231 mm |
|---|---|
| Depth | 170 mm |
| Height | 216 mm |
| Weight | 4.8 kg |
| Package width | 358 mm |
| Package depth | 363 mm |
| Package height | 310 mm |
| Package weight | 6.3 kg |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | 10 - 85 °C |
