Brother TD4650TNWB
View 1 View 2 View 3 View 4 View 5
Brother

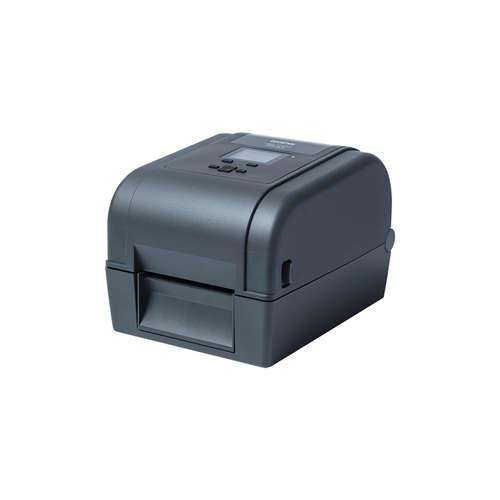

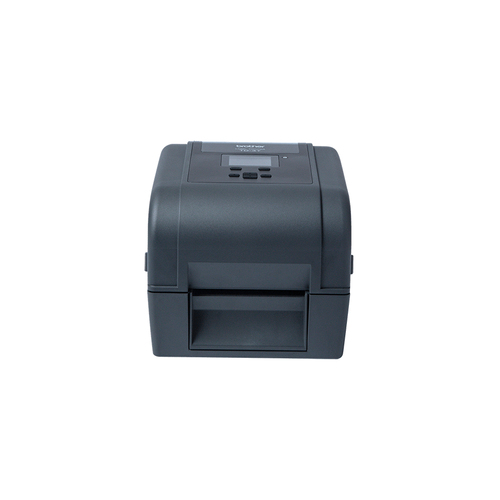

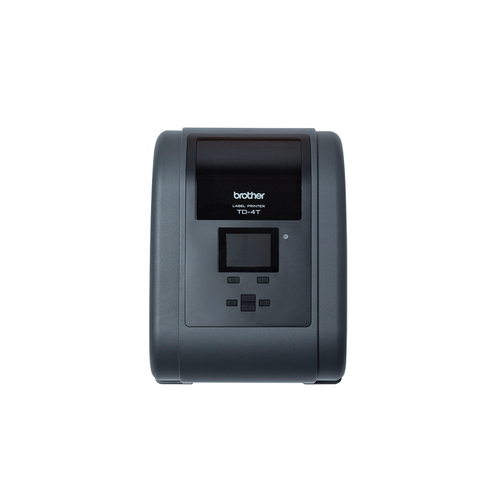

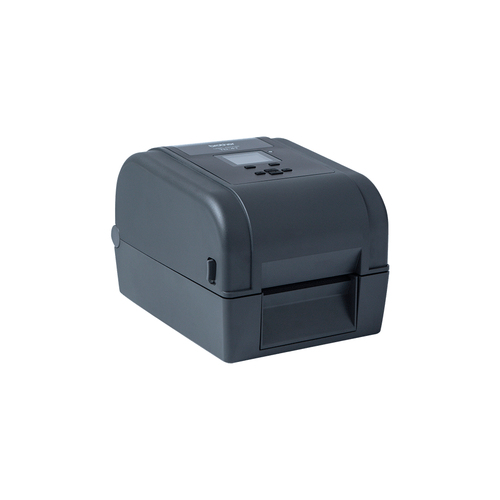

Brother TD-4650TNWB label printer Direct thermal / Thermal transfer 203 x 203 DPI 203.2 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

Part number TD4650TNWB

4.3 DESKTOP PRINTER, TT, 203DPI, 8IPS, COLOR LCD, BLUETOOTH / WLAN/ LAN/USB/ HOS

  • Ease of use with 2.3" colour LCD display
  • Range of connectivity options including USB, Network, WiFi and Bluetooth

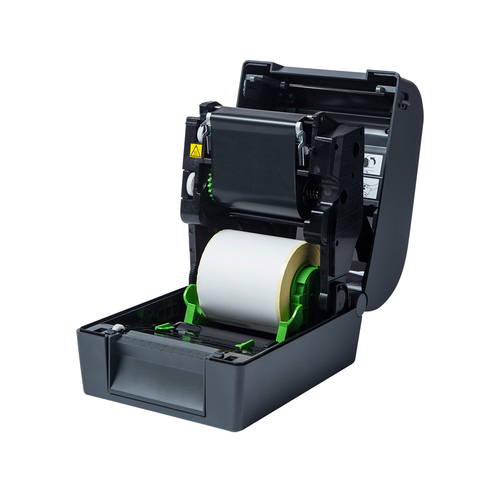

  • High capacity with 300m ribbon, minimising downtime
  • 203dpi high resolution printing for crisp text and barcodes
  • Fast print speeds up to 8 inches per second
Manufacturer
Brother
Part number
TD4650TNWB
Condition
New
Category
Data Capture / Point of Sale › Pos Printers
1GPA category
Hardware

Overview

The TD-4650TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.

Specifications

Printing
Print technologyDirect thermal / Thermal transfer
ColourNo
Maximum resolution203 x 203 DPI
Print speed203.2 mm/sec
Maximum printing width10.8 cm
Maximum print length25.4 m
Paper handling
Maximum label width11.2 cm
Maximum roll diameter12.7 cm
Ports & interfaces
Connectivity technologyWired & Wireless
Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.2
USB portYes
USB 2.0 ports quantity1
RS-232 ports1
Performance
Internal memory128 MB
Flash memory128 MB
Built-in barcodesAZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Design
Product colourBlack
Built-in displayYes
DisplayLCD
Display diagonal5.84 cm (2.3")
Colour displayYes
Control typeButtons
System requirements
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supportedWindows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Linux operating systems supportedYes
Operational conditions
Operating relative humidity (H-H)5 - 40%
Storage relative humidity (H-H)25 - 85%
Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)10 - 90 °C
Weight & dimensions
Width219 mm
Depth285 mm
Height191 mm
Weight3 kg
Packaging data
Package weight4.77 kg
Packaging content
Cables includedAC, USB
Bundled softwareBartender Ultra Lite Edition
Quick start guideYes
AC adapter includedYes
Software development kit (SDK)Yes
Logistics data
Harmonized System (HS) code84433210
Pallet gross height13.8 cm
Pallet gross weight163.2 kg
Master (outer) cases per pallet30 pc(s)
Master (outer) cases per pallet layer6 pc(s)
Layers per pallet5 pc(s)
Products per pallet30 pc(s)
Technical details
Sustainability certificatesENERGY STAR
Pallet type800 x 1200 mm
Other features
Country of originTaiwan
Languages supportDanish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Slovenian
Spare part retention5 year(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
