Brother TD4520DN
View 1 View 2 View 3 View 4 View 5 View 6
Brother

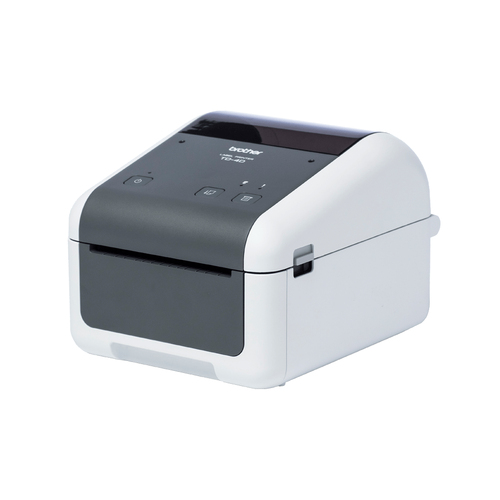

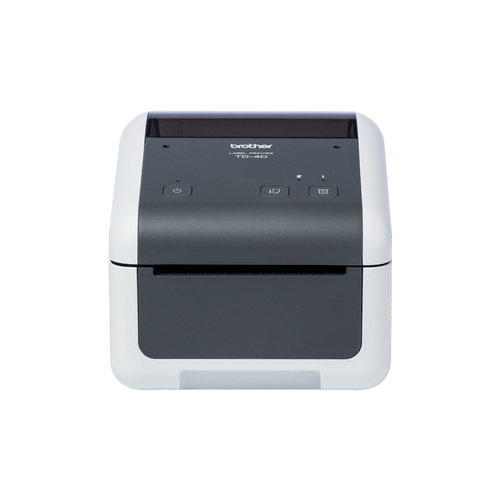

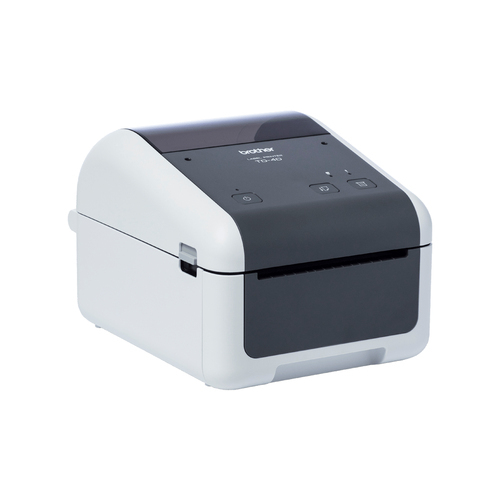

Brother TD-4520DN label printer Direct thermal 300 x 300 DPI 203 mm/sec Wired Ethernet LAN

Part number TD4520DN

4.3 DESKTOP PRINTER, DT, 300DPI, 6IPS, LAN/ USB/ SER, 2YRS PREMIER WARRANTY, SOT

  • Network connectivity
  • Fast print speeds up to 6 inches per second
  • Print width up to 4.27 inches / 108mm
  • Easy set-up with automatic media configuration
  • Ready to integrate with iOS and Android apps
Manufacturer
Brother
Part number
TD4520DN
Condition
New
Category
Printers & Office Equipment › Printers-Home/Office
1GPA category
Hardware

Overview

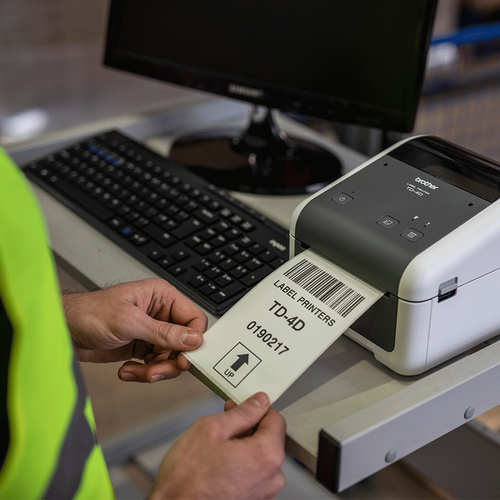

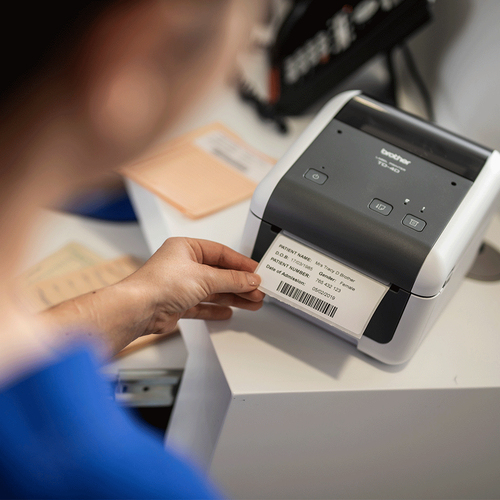

Using direct thermal print technology, accurate images with crisp definition is created. Great for printing high-volume, temporary labels with barcodes. The length of media is automatically calculated with the media calibration function. Removing the need of manually entering label dimensions. With network connectivity, data is quickly shared with different departments. Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.

Specifications

Printing
Print technologyDirect thermal
ColourNo
Maximum resolution300 x 300 DPI
Print speed203 mm/sec
Print speed6 lpm
Minimum print length1.7 cm
Mirror printingYes
Text styleBold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Maximum print length3 m
Paper handling
Maximum label width11.8 cm
Maximum roll diameter12.7 cm
Core diameter1.27 cm
Ports & interfaces
Connectivity technologyWired
Ethernet LANYes
Wi-FiNo
BluetoothNo
USB portYes
USB 2.0 ports quantity1
RS-232 ports1
Performance
Page description languagesCPCL-native, DPL, EPL2, ESC P, Raster_P, ZPL II
Internal memory256 MB
Flash memory64 MB
Built-in barcodesCODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, ITF, POSTNET, UPC-A, UPC-E
Number of fonts6
Font stylesBrougham,Brussels,Helsinki,Letter Gothic,San Diego
Design
Product colourGrey, White
Built-in displayNo
DisplayNo
Power
Auto power offYes
System requirements
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Server operating systems supportedWindows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mobile operating systems supportedAndroid 4.1, Android 4.2, Android 4.2.1, Android 4.2.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 12, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Linux operating systems supportedYes
Operational conditions
Operating relative humidity (H-H)5 - 40%
Storage relative humidity (H-H)20 - 85%
Operating temperature (T-T)10 - 90 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Width265 mm
Depth335 mm
Height258 mm
Weight3.04 kg
Packaging data
Quantity per pack1 pc(s)
Package weight3.96 kg
Packaging content
Cables includedAC, USB
Quick start guideYes
Warranty cardYes
AC adapter includedYes
Software development kit (SDK)Yes
Starter roll includedYes
Logistics data
Harmonized System (HS) code84433210
Pallet gross height14.4 cm
Pallet gross weight176.4 kg
Master (outer) cases per pallet40 pc(s)
Master (outer) cases per pallet layer8 pc(s)
Layers per pallet5 pc(s)
Products per pallet40 pc(s)
Technical details
Pallet type800 x 1200 mm
Other features
Networking features10/100BASE-TX
LED indicatorsError, Power, Status
Country of originChina
Languages supportSimplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Date & time printingYes
Number of languages18

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
