Brother TD4420DN
View 1 View 2 View 3 View 4 View 5 View 6
Brother

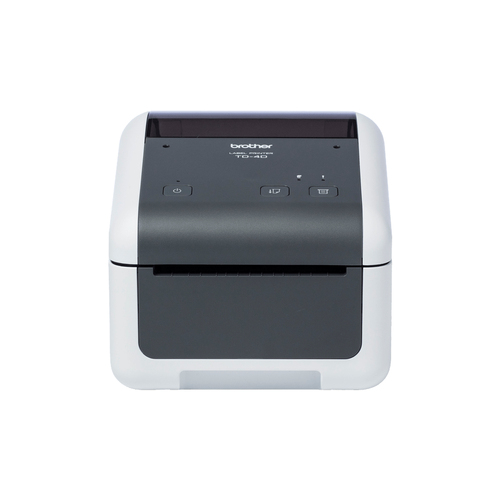

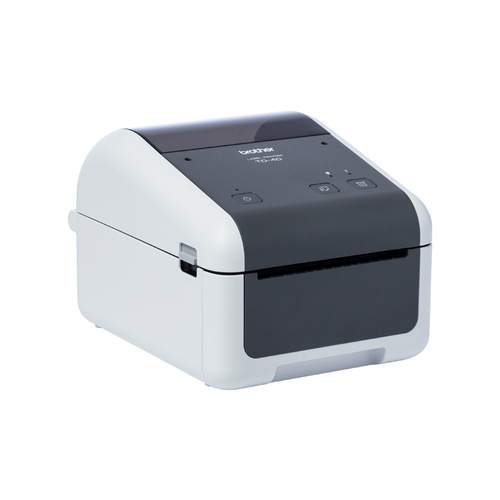

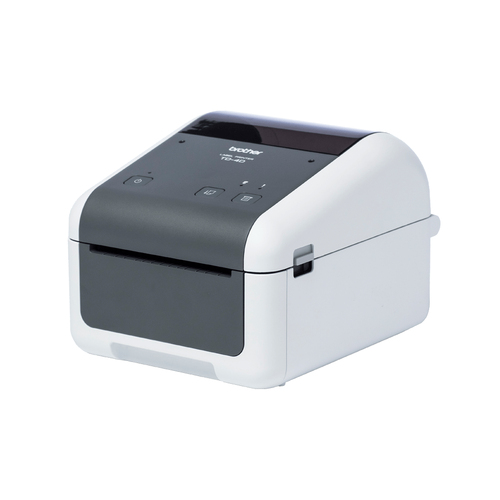

Brother TD-4420DN label printer Direct thermal 203 x 203 DPI 203 mm/sec Wired Ethernet LAN

Part number TD4420DN

TD4420DN - LABEL PRINTER - DIRECT THERMAL - DESKTOP - USB,SERIAL,LAN - 8 IPS - 2

  • Network connectivity
  • Fast print speeds up to 8 inches per second
  • Print width up to 4.09 inches / 104mm
  • Easy set-up with automatic media configuration
  • Ready to integrate with iOS and Android apps
Manufacturer
Brother
Part number
TD4420DN
Condition
New
Category
Data Capture / Point of Sale › Pos Printers
1GPA category
Hardware

Overview

With built-in network connectivity, the TD-4420DN is designed to be shared. Labels are printed at a high-resolution, producing sharp and clear images. Making the TD-4420DN ideal for printing 1D barcodes for scanning. Direct thermal print technology produces accurate images, with crisp definition. Utilising heat-sensitive coating, ink is not required. A good choice for printing high-volume, temporary labels with barcodes with a maximum media width up to 118mm/4.65 inches wide.

Specifications

Printing
Print technologyDirect thermal
ColourNo
Maximum resolution203 x 203 DPI
Print speed203 mm/sec
Print speed8 lpm
Maximum print height10.4 cm
Mirror printingYes
Text styleBold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Maximum print length3 m
Paper handling
Maximum label width11.8 cm
Maximum roll diameter12.7 cm
Core diameter1.27 cm
Ports & interfaces
Connectivity technologyWired
Ethernet LANYes
Wi-FiNo
BluetoothNo
USB portYes
USB 2.0 ports quantity1
RS-232 ports1
Performance
Page description languagesESC P, Raster_P, ZPL II
Internal memory256 MB
Flash memory64 MB
Number of fonts6
Font stylesBrougham,Brussels,Helsinki,Letter Gothic,San Diego
Design
Product colourGrey, White
Built-in displayNo
DisplayNo
Power
Auto power offYes
System requirements
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Server operating systems supportedWindows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mobile operating systems supportedAndroid 4.1, Android 4.2, Android 4.2.1, Android 4.2.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 12, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Linux operating systems supportedYes
Operational conditions
Operating relative humidity (H-H)5 - 40%
Storage relative humidity (H-H)20 - 85%
Operating temperature (T-T)10 - 90 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Width265 mm
Depth335 mm
Height256 mm
Weight3.1 kg
Packaging data
Quantity per pack1 pc(s)
Package weight4.02 kg
Packaging content
Cables includedAC, USB
Quick start guideYes
Warranty cardYes
AC adapter includedYes
Software development kit (SDK)Yes
Starter roll includedYes
Logistics data
Harmonized System (HS) code84433210
Pallet gross height14.3 cm
Pallet gross weight176.4 kg
Master (outer) cases per pallet40 pc(s)
Master (outer) cases per pallet layer8 pc(s)
Layers per pallet5 pc(s)
Products per pallet40 pc(s)
Technical details
Pallet type800 x 1200 mm
Other features
LED indicatorsError, Power, Status
Country of originChina
Languages supportSimplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Date & time printingYes
Number of languages18
Spare part retention5 year(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
