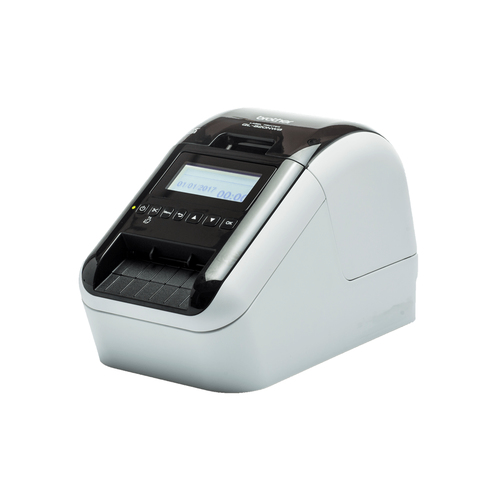

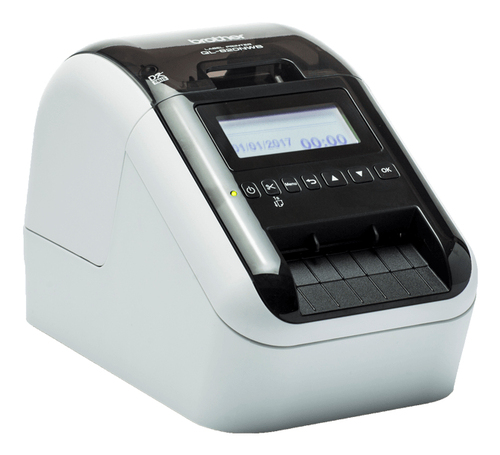

Brother QL-820NWB
View 1 View 2 View 3 View 4 View 5 View 6 View 7 View 8
Brother

Brother QL-820NWBVMXX1 label printer Direct thermal Colour 300 x 600 DPI 176 mm/sec Wired & Wireless Ethernet LAN DK Wi-Fi Bluetooth

Part number QL-820NWB

QL-820NWB LABEL PRINTER ULTRA FAST WL BLUETOOTH

  • USB, Ethernet, Wi-Fi and Bluetooth connectivity with support for MFi and AirPrint
  • Large backlit LCD display for easy set-up and operation
  • Print in black and red without needing ink or toner
  • Built-in cutter to create your own length labels
  • Built-in memory function for stand-alone label printing, plus 3 years warranty
Manufacturer
Brother
Part number
QL-820NWB
Condition
New
Category
Printers & Office Equipment › Printers-Home/Office
1GPA category
Hardware

Overview

Print labels from your PC, Mac, smartphone or tablet using USB, Ethernet, Wi-Fi and Bluetooth. Or alternatively use it in standalone mode by selecting and printing labels previously designed and uploaded to the memory, using the integrated backlit LCD display. When used with special rolls, you can print labels that can contain both black and red print without needing any ink. And when you can print custom sized labels up to one metre in length using the built-in cutter and continuous rolls, you can see why this is the most advanced label printer available.

Specifications

Printing
Print technologyDirect thermal
ColourYes
Maximum resolution300 x 600 DPI
Print speed176 mm/sec
Print speed110 lpm
Printing coloursBlack, Red
Maximum printing width6.2 cm
Maximum print height6.1 cm
Minimum print length100 cm
Vertical printingYes
Text alignmentCenter, Justify, Left, Right
Paper handling
AutocutterYes
Maximum label width6.2 cm
Ports & interfaces
Connectivity technologyWired & Wireless
Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version2.0+EDR
Bluetooth profilesBIP, HCRP, OPP, SPP
USB portYes
USB 2.0 ports quantity1
Mobile printing technologiesApple AirPrint
Wi-Fi DirectYes
Performance
Page description languagesESC P, Raster_P
Flash memory6 MB
Built-in barcodesCODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Code-39 Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts5
Bitmap fontsGothic
Typestyles supportedBold, Italics
Tape typeDK
Number of styles8
Security algorithmsEAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Design
Product colourBlack, White
Built-in displayYes
DisplayLCD
Backlight displayYes
Control typeButtons
Power
Battery typeBuilt-in battery
Number of batteries supported1
Auto power offYes
RechargeableYes
Battery
Battery technologyLithium-Ion (Li-Ion)
Rechargeable batteryYes
System requirements
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Operational conditions
Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)10 - 35 °C
Weight & dimensions
Width185 mm
Depth300 mm
Height230 mm
Weight2.25 kg
Packaging data
Package width298 mm
Package depth184 mm
Package height232 mm
Package weight2.67 kg
Packaging content
Cables includedAC, USB
Batteries includedYes
Bundled softwareP-touch Editor 5, P-touch Editor Lite LAN, P-touch Address Book, BR Admin Light
Drivers includedYes
Quick start guideYes
Warranty cardYes
AC adapter includedYes
ManualYes
Logistics data
Harmonized System (HS) code84433210
Pallet gross height15 cm
Pallet gross weight275.5 kg
Master (outer) cases per pallet24 pc(s)
Master (outer) cases per pallet layer4 pc(s)
Layers per pallet6 pc(s)
Products per pallet72 pc(s)
Technical details
Sustainability complianceYes
Sustainability certificatesENERGY STAR
Pallet type1200 x 1000 mm
Other features
CompatibilityApple iPhone SE Apple iPhone 6s Plus Apple iPhone 6s Apple iPhone 6 Puls Apple iPhone 6 Apple iPhone 5s Apple iPhone 5c Apple iPhone 5 Apple iPhone 4s Apple iPad Pro (12.9-inch) Apple iPad Air2 Apple iPad Air Apple iPad mini 4 Apple iPad mini 3 Apple iPad mini 2 Apple iPad mini Apple iPad (4th generation) Apple iPad (3rd generation) Apple iPad2 Apple iPod touch (6th generation) Apple iPod touch (5th generation)
Memory capacity255 characters
Networking features10/100 Base-TX
Country of originChina
Number of frames126
Languages supportMulti
Date & time printingYes
Number of languages18
Spare part retention5 year(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
