Overview

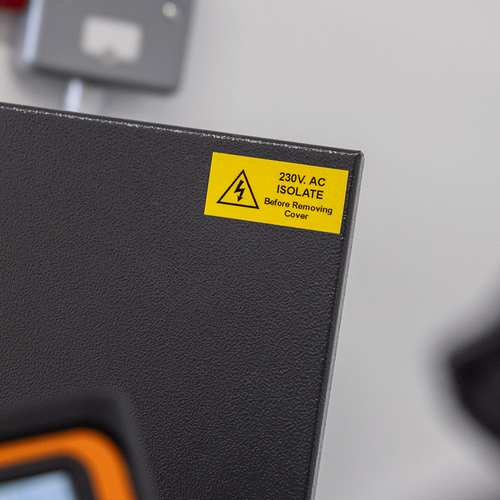

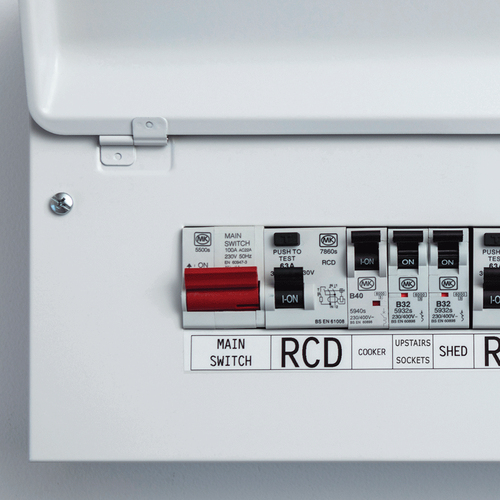

Ensure durable, long-life identification of electrical installations, including danger/warning signs, solar panels and AV equipment, cables and wires. Print labels in standalone mode using the built-in QWERTY keyboard, large display and specialist labelling functions. Integrated bluetooth offers the flexibility to connect to a PC, smartphone or tablet and print labels that comply with all industry standards and regulations using Brother's Pro Label Tool App and P-touch Editor software. Compatible with Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - our market-leading machines are built to last, with labels that match.
Specifications
Printing
| Print technology | Thermal transfer |
|---|
| Colour | No |
|---|
| Maximum resolution | 180 x 180 DPI |
|---|
| Number of printable dots | 128 dot |
|---|
| Print speed | 20 mm/sec |
|---|
| Maximum printing width | 1.58 cm |
|---|
| Maximum print height | 1.8 cm |
|---|
| Vertical printing | Yes |
|---|
| Mirror printing | Yes |
|---|
| Rotated printing | Yes |
|---|
| Maximum print length | 1 m |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.0 |
|---|
| USB port | Yes |
|---|
Performance
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E |
|---|
| Number of symbols | 477 |
|---|
| Number of fonts | 7 |
|---|
| Tape type | HSE/TZe |
|---|
| Number of printing lines (max) | 5 |
|---|
| Underline | Yes |
|---|
Design
| Product colour | Black, Orange |
|---|
| Keyboard number of keys | 64 |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
| Backlight display | Yes |
|---|
| Keyboard layout | QWERTY |
|---|
Power
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Battery type | Built-in battery |
|---|
| Number of batteries supported | 1 |
|---|
| Auto power off | Yes |
|---|
| Power source type | Battery |
|---|
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery weight | 190 g |
|---|
| Battery capacity | 14 Wh |
|---|
| Rechargeable battery | Yes |
|---|
System requirements
| Windows operating systems supported | Windows 10, Windows 11 |
|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
|---|
| Mobile operating systems supported | Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16 |
|---|
Operational conditions
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 20 - 80% |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
Weight & dimensions
| Width | 135 mm |
|---|
| Depth | 236 mm |
|---|
| Height | 70 mm |
|---|
| Weight | 800 g |
|---|
Packaging data
| Package width | 126 mm |
|---|
| Package depth | 334.4 mm |
|---|
| Package height | 393 mm |
|---|
| Package weight | 3.08 kg |
|---|
Packaging content
| Cables included | USB |
|---|
| Batteries included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Warranty card | Yes |
|---|
| Wrist strap included | Yes |
|---|
Logistics data
| Pallet gross height | 16.5 cm |
|---|
| Pallet gross weight | 258 kg |
|---|
| Master (outer) cases per pallet | 24 pc(s) |
|---|
| Master (outer) cases per pallet layer | 6 pc(s) |
|---|
| Layers per pallet | 4 pc(s) |
|---|
| Products per pallet | 72 pc(s) |
|---|
Technical details
| Multi-block | 99 |
|---|
| PC connection | USB 3.2 Gen 1 (3.1 Gen 1) |
|---|
| Sustainability compliance | Yes |
|---|
| Sustainability certificates | ENERGY STAR |
|---|
| Pallet type | 1200 x 1000 mm |
|---|
Other features
| Memory capacity | 1500 characters |
|---|
| Print preview | Yes |
|---|
| Label memory | 99 label(s) |
|---|
| Number of frames | 7 |
|---|
| Languages support | Multi |
|---|
