Overview

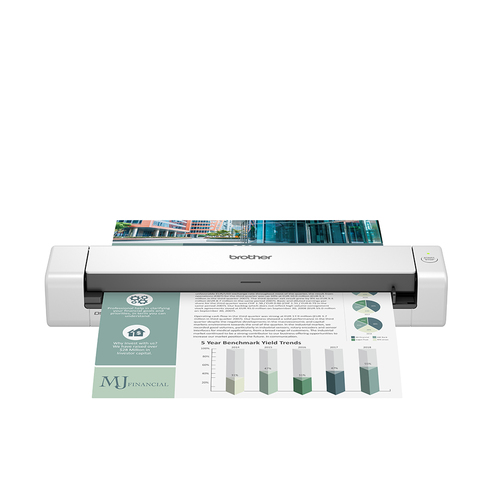

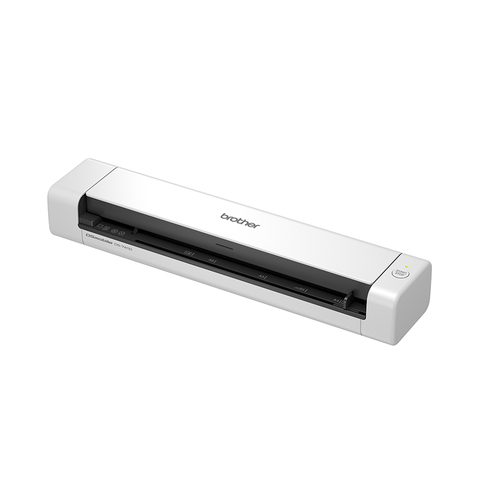

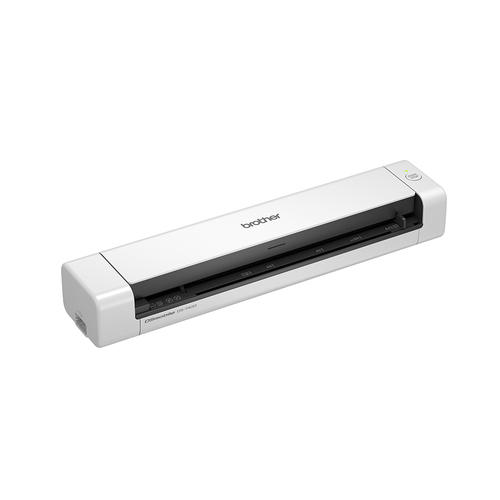

Bring your documents to life with the DSmobile DS-740D portable document scanner. Enjoy scanning, saving and sharing your files whether you are in the office or out on the road. Whether it's receipts, 2-sided documents or ID cards, your files are easily transformed into digital files. Making your information safer, easier to find and more convenient to edit or share. The unique roller system means you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.
Specifications
Scanning
| Maximum scan size | 215.9 x 1828.8 mm |
|---|
| Optical scanning resolution | 600 x 600 DPI |
|---|
| Enhanced scan resolution | 1200 x 1200 DPI |
|---|
| Colour scanning | Yes |
|---|
| Duplex scanning | Yes |
|---|
| Input colour depth | 48 bit |
|---|
| Output colour depth | 24 bit |
|---|
| Greyscale levels | 256 |
|---|
| Black/white scanning colour modes | Grayscale, Monochrome |
|---|
Design
| Scanner type | Sheet-fed scanner |
|---|
| Product colour | Black, White |
|---|
| Built-in display | No |
|---|
Performance
| Scan to | E-mail, File, Image, OCR |
|---|
| Scan drivers | ICA, SANE, TWAIN, WIA |
|---|
| Scanning noise level | 53 dB |
|---|
| Sound pressure level (max) | 42 dB |
|---|
| Internal memory | 256 MB |
|---|
Input capacity
| Standard input capacity | 1 sheets |
|---|
Paper handling
| Scanning media types supported | Business Card, Plain paper, Plastic Card |
|---|
| Maximum ISO A-series paper size | A4 |
|---|
| Card thickness (max) | 1.24 mm |
|---|
| Maximum scan width | 21.6 cm |
|---|
| Maximum scan length | 182.9 cm |
|---|
Ports & interfaces
| USB port | Yes |
|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
|---|
| USB connector type | Micro-USB B |
|---|
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
|---|
Power
| Power supply type | USB |
|---|
| Power consumption (typical) | 2.9 W |
|---|
| Power consumption (standby) | 1.4 W |
|---|
| Power consumption (off) | 0.01 W |
|---|
Weight & dimensions
| Width | 162 mm |
|---|
| Depth | 76 mm |
|---|
| Height | 377 mm |
|---|
| Weight | 537 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 377 mm |
|---|
| Package depth | 162 mm |
|---|
| Package height | 76 mm |
|---|
| Package weight | 1.17 kg |
|---|
Packaging content
| Warranty card | Yes |
|---|
| Cables included | Micro-USB |
|---|
| Quick start guide | Yes |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 10 - 90% |
|---|
Technical details
| Pallet type | 800 x 1200 mm |
|---|
Logistics data
| Products per pallet | 240 pc(s) |
|---|
| Country of origin | China |
|---|
| Master (outer) cases per pallet | 80 pc(s) |
|---|
| Layers per pallet | 8 pc(s) |
|---|
| Pallet gross weight | 286 kg |
|---|
| Pallet gross height | 16.7 cm |
|---|
| Master (outer) cases per pallet layer | 10 pc(s) |
|---|
| Harmonized System (HS) code | 84716070 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
