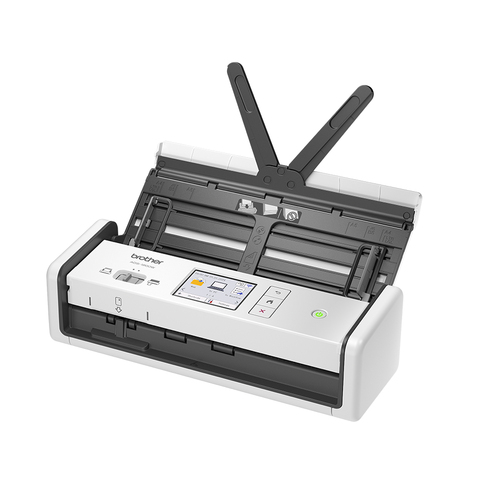

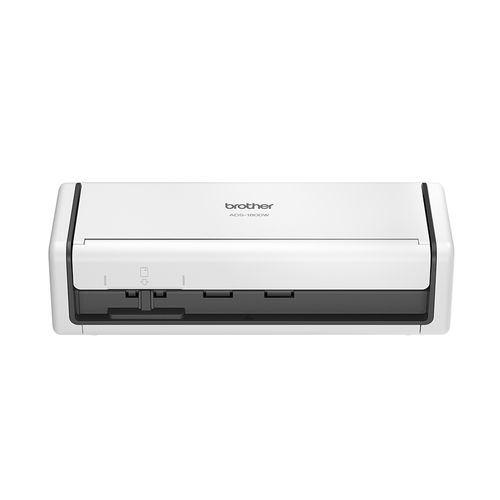

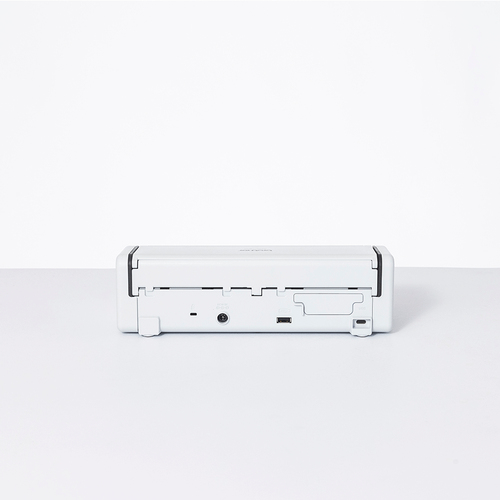

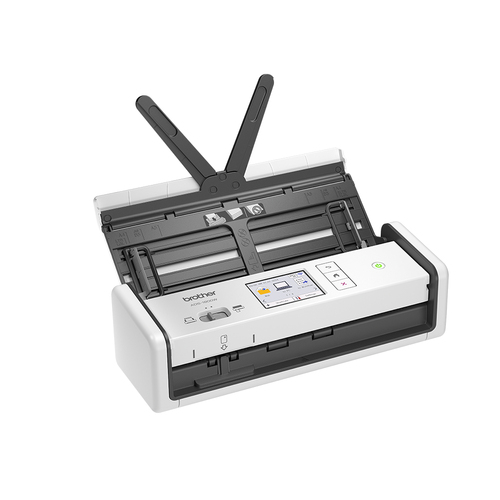

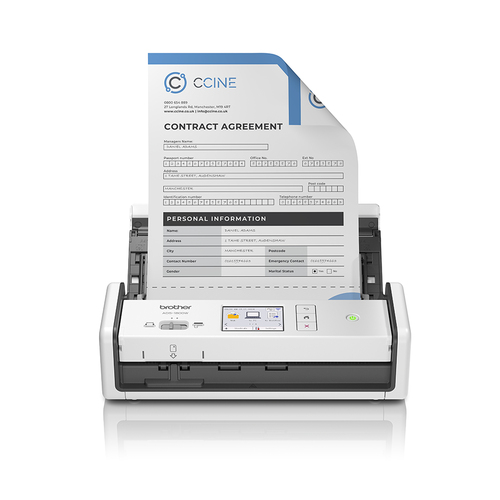

Brother ADS-1800W scanner ADF scanner 600 x 600 DPI A4 White
Part number ADS-1800W
BROTHER ADS-1800W SCANNER BROTHER ADS-1800W WIRELESS SCANNER
- Scan up to 30ppm
- 60ipm, 2-sided colour scan
- Large 7.1cm touchscreen
- 20 sheet Automatic Document Feeder (ADF)
- Power directly via USB Type-C
- Create up to 20 one-touch scan activity shortcuts
- Manufacturer
- Brother
- Part number
- ADS-1800W
- Condition
- New
- Category
- Accessories › Scanner Accessories
- 1GPA category
- Hardware
Overview
Powerful yet compact and portable, scanning from any location just got easier with the ADS-1800W. Compatible with external powerbanks, effortlessly scan your documents when and where it is most convenient for you. Together with wireless connectivity, you can easily connect and scan using your mobile phone or tablet and enjoy seamless workflows with powerful PDF editing and document management software. Create up to 25 preset scan to destinations No PC connection required Mobile App support OCR and PDF editing software included Compatible with Barcode Utility Optional paper output tray available Supports Brother Mobile Connect app *See datasheet for detailed technical information
Specifications
| Maximum scan size | 215.9 x 355.6 mm |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 30 ppm |
| Scanner type | ADF scanner |
|---|---|
| Product colour | White |
| Display | LCD |
| Display diagonal | 7.11 cm (2.8") |
| Touchscreen | Yes |
| Colour display | Yes |
| Control type | Buttons, Touch |
| Built-in display | Yes |
| Sensor type | Dual CIS |
|---|---|
| Scan to | FTP, PC, SMB |
| Scan drivers | SANE, TWAIN, WIA |
| Scanning noise level | 62 dB |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper |
|---|---|
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4 |
| Card thickness (max) | 1.24 mm |
| Paper tray media weight | 51.8 - 128 g/m² |
| USB port | Yes |
|---|---|
| USB connector type | USB Type-C |
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | 64-bit WEP, 128-bit WEP, EAP-TLS, EAP-TTLS, SMTP-AUTH, SNMPv3, SSH, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-TKIP, WPA3-PSK, WPA3-SAE |
| IPv6 support | Yes |
| Power supply type | AC/USB |
|---|---|
| Power consumption (typical) | 10 W |
| Power consumption (standby) | 2 W |
| Power consumption (off) | 0.1 W |
| Width | 288 mm |
|---|---|
| Depth | 101 mm |
| Height | 85 mm |
| Weight | 1.42 kg |
| Package width | 288 mm |
|---|---|
| Package depth | 211 mm |
| Package height | 205 mm |
| Package weight | 2.41 kg |
| Cables included | USB |
|---|
| Windows operating systems supported | Windows 10, Windows 11 |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 5 - 35 °C |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
